Fig. 6

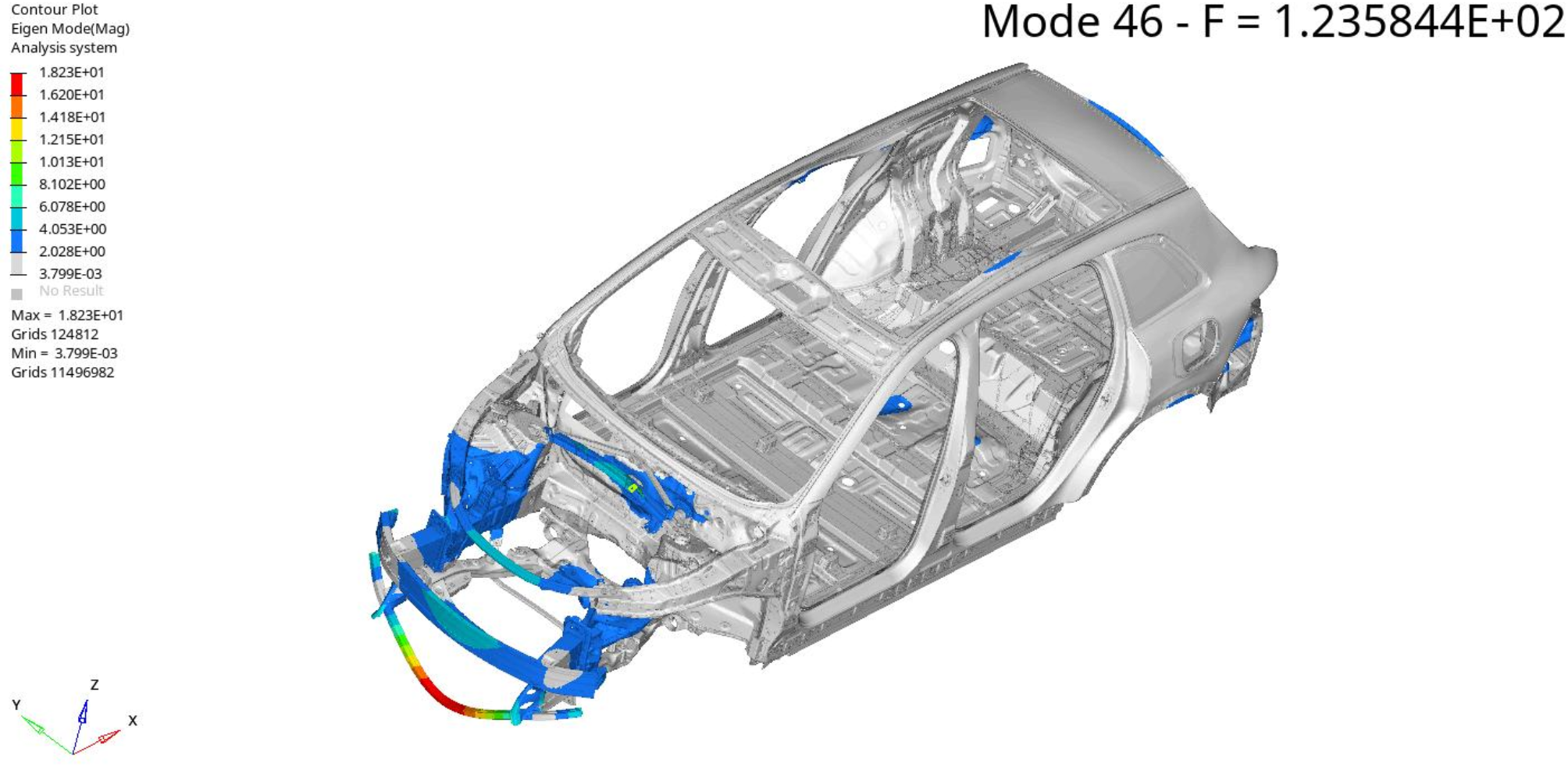

BIW 46th order vibration mode. Deformation scale: 5. This figure was solved using Altair Compute Console 2021.1 and post-processed in Altair HyperView 2021.1(Altair, USA. https://altair.com/hyperworks).
Fig. 6 | Scientific Reports
BIW 46th order vibration mode. Deformation scale: 5. This figure was solved using Altair Compute Console 2021.1 and post-processed in Altair HyperView 2021.1(Altair, USA. https://altair.com/hyperworks).
