Fig. 7 | Scientific Reports

Fig. 7

From: Compact flexible linear stepping motors

Fig. 7

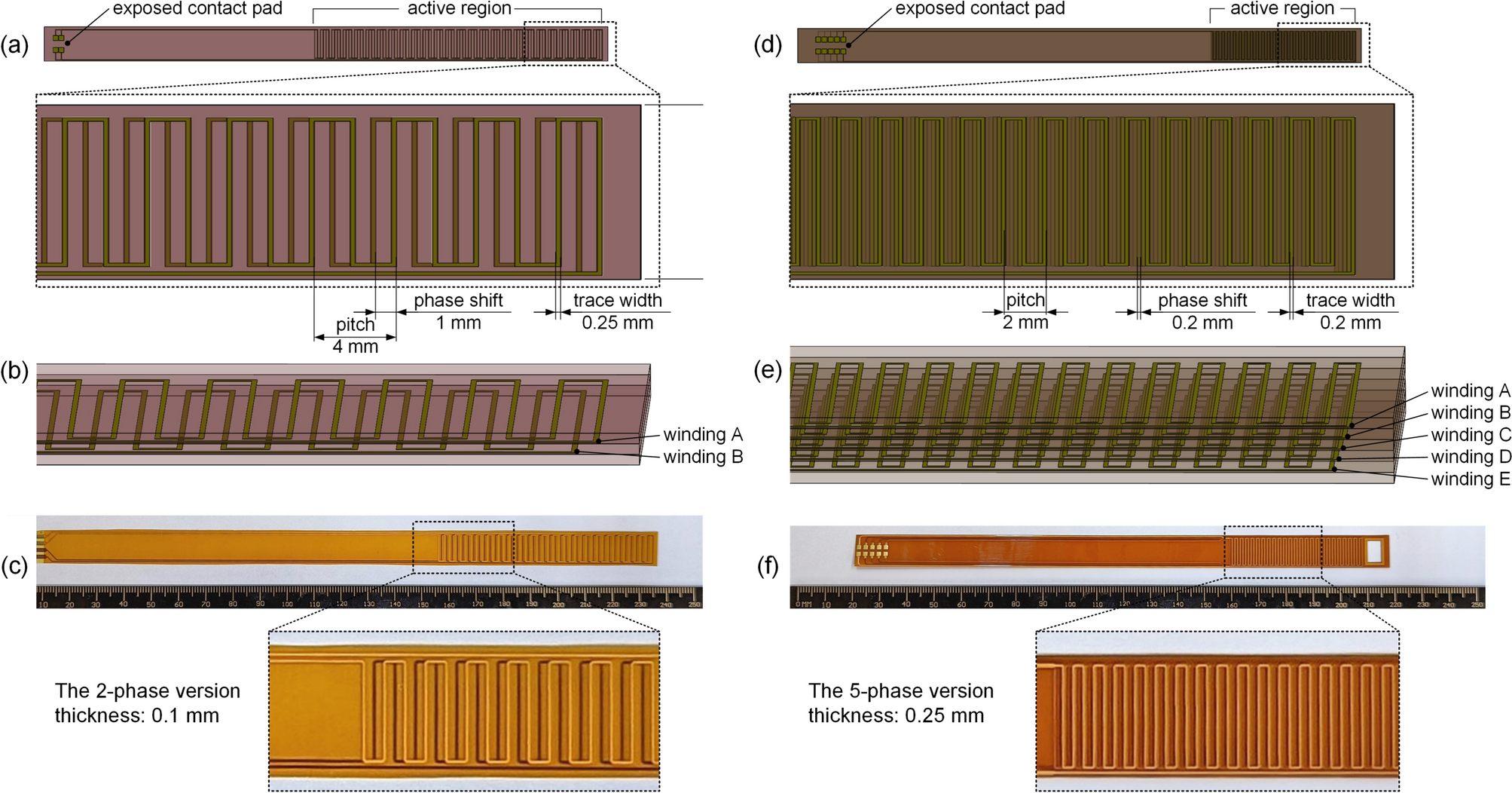

(a) The top-view, (b) the tiled side view, and (c) the photograph with enlargement of the 2-phase FPCB slider. (d) The top-view, (e) the tiled side view, and (f) the photograph with enlargement of the 5-phase FPCB slider. To show the inner structures clearly, thickness in (b) and (e) is not to scale.
