Fig. 1 | Scientific Reports

Fig. 1

From: Oroxylin A may promote cell apoptosis and inhibit epithelial-mesenchymal transition in endometrial cancer, associated with the ERβ/PI3K/AKT pathway

Fig. 1The alternative text for this image may have been generated using AI.

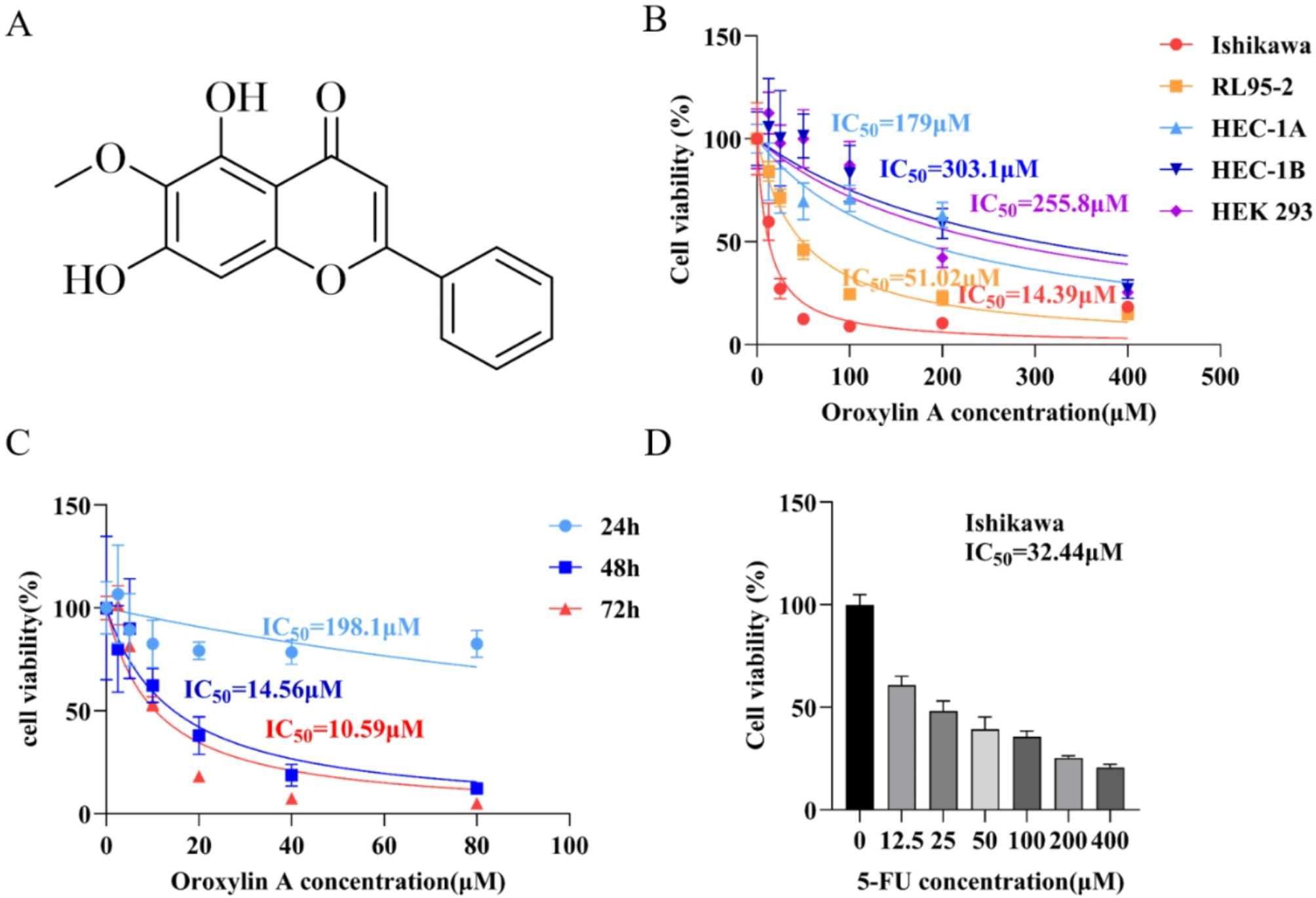

Chemical structure of OA and its effects on cell viability in a range of cell lines. (A) Chemical structure of OA. (B) Cell viability of Ishikawa, RL95-2, HEC-1 A, HEC-1B, and HEK293 cells after treatment with OA for 48 h. (C) Viability of Ishikawa cells after exposure to OA for 24 h, 48 h, and 72 h. (D) Viability of Ishikawa cells after 5-FU treatment for 48 h.
