From: Erratic behavior of platinum-group elements along an olivine–Cr-spinel cotectic in sulfide-undersaturated basaltic magma: roles of Cr-spinel and alloys

Fig. 3The alternative text for this image may have been generated using AI.

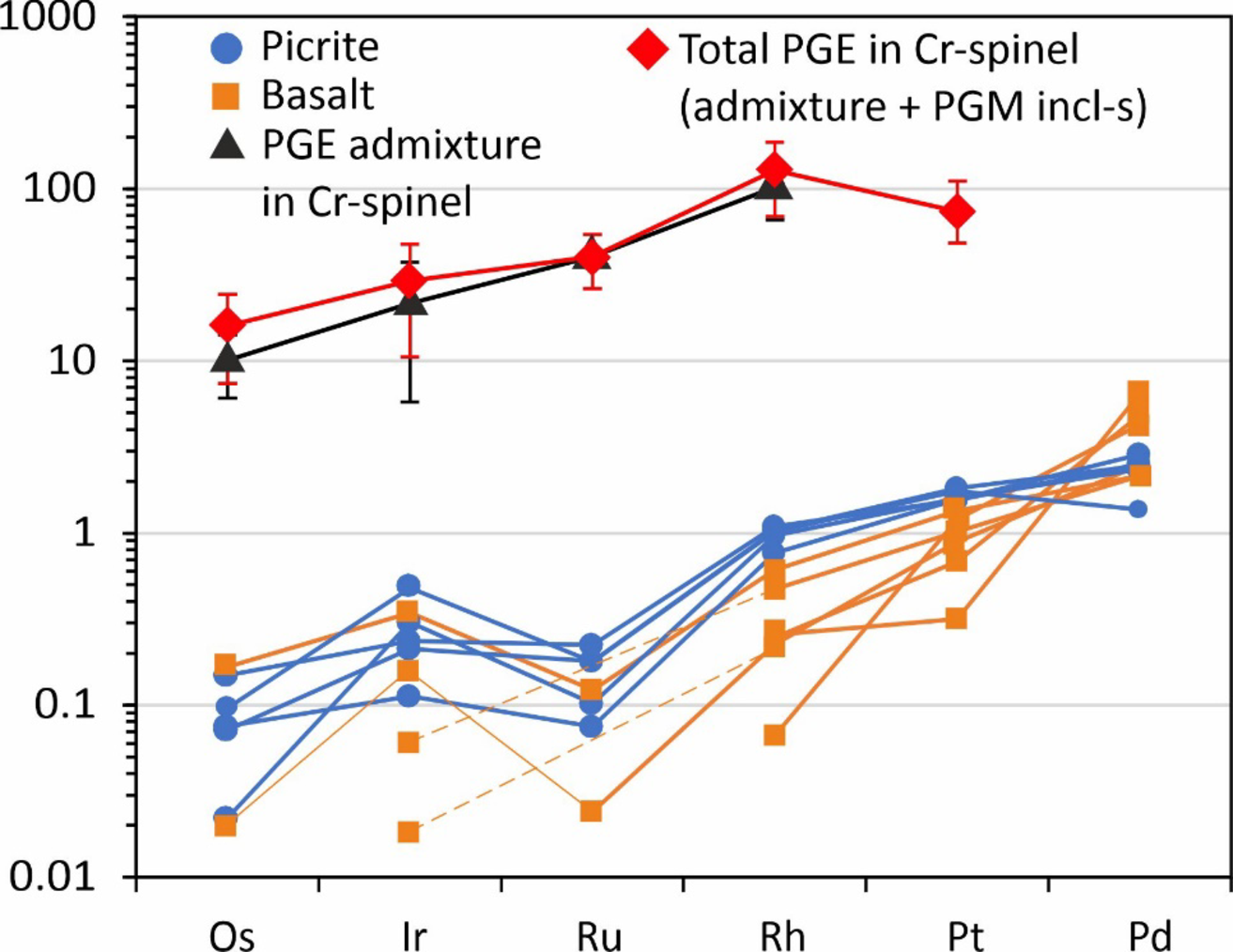

A primitive-mantle (PM-) normalized spider-diagram with the plotted composition of the studied picrites and basalts, average PGE contents in Cr-spinel excluding (PGE admixture only) and including Cr-spinel-hosted PGM inclusions. PM values for normalization are from64.
