Fig. 8
From: Design and experiment of key mechanism of root cutting device for heading vegetables

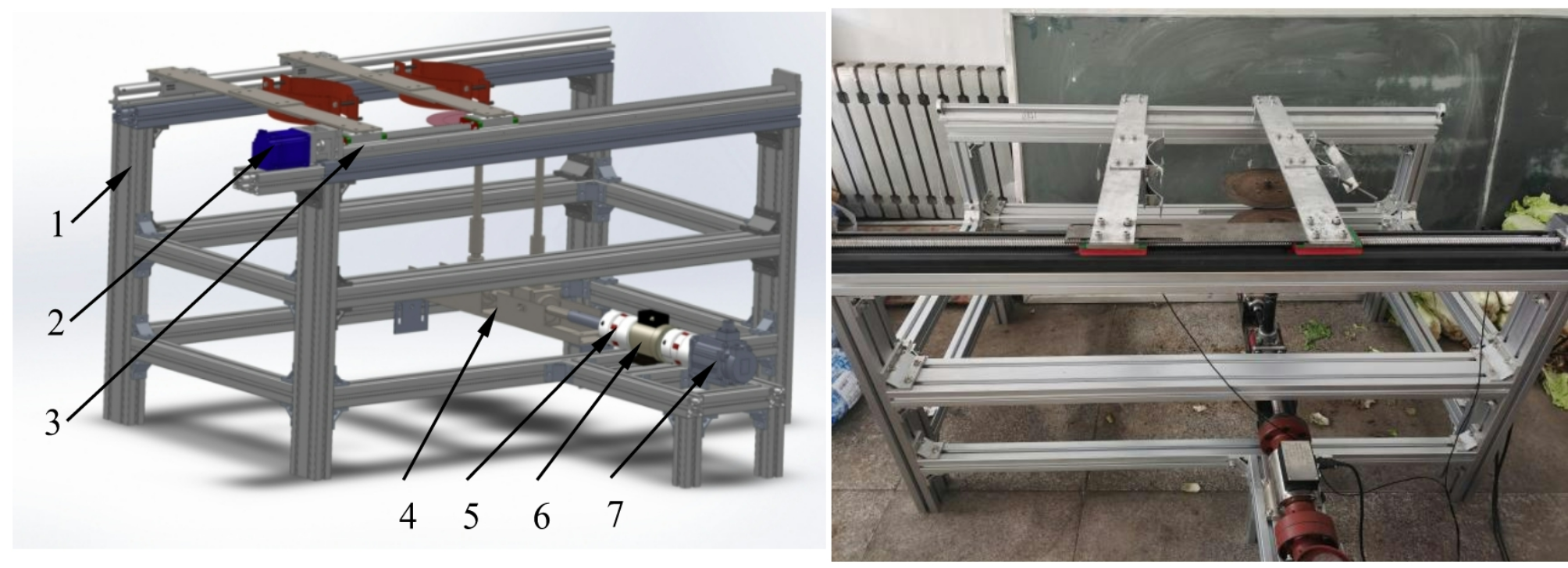

Design of Chinese cabbage root cutting test-bed. (1) Frame, (2) conveying motor, (3) clamping conveying device, (4) double disc cutting mechanism, (5) elastic sleeve pin coupling, (6) dynamic torque sensor, (7) cutting motor.
