Fig. 7

From: Cavitation activity induced by spring-loaded core needle biopsy devices

Fig. 7The alternative text for this image may have been generated using AI.

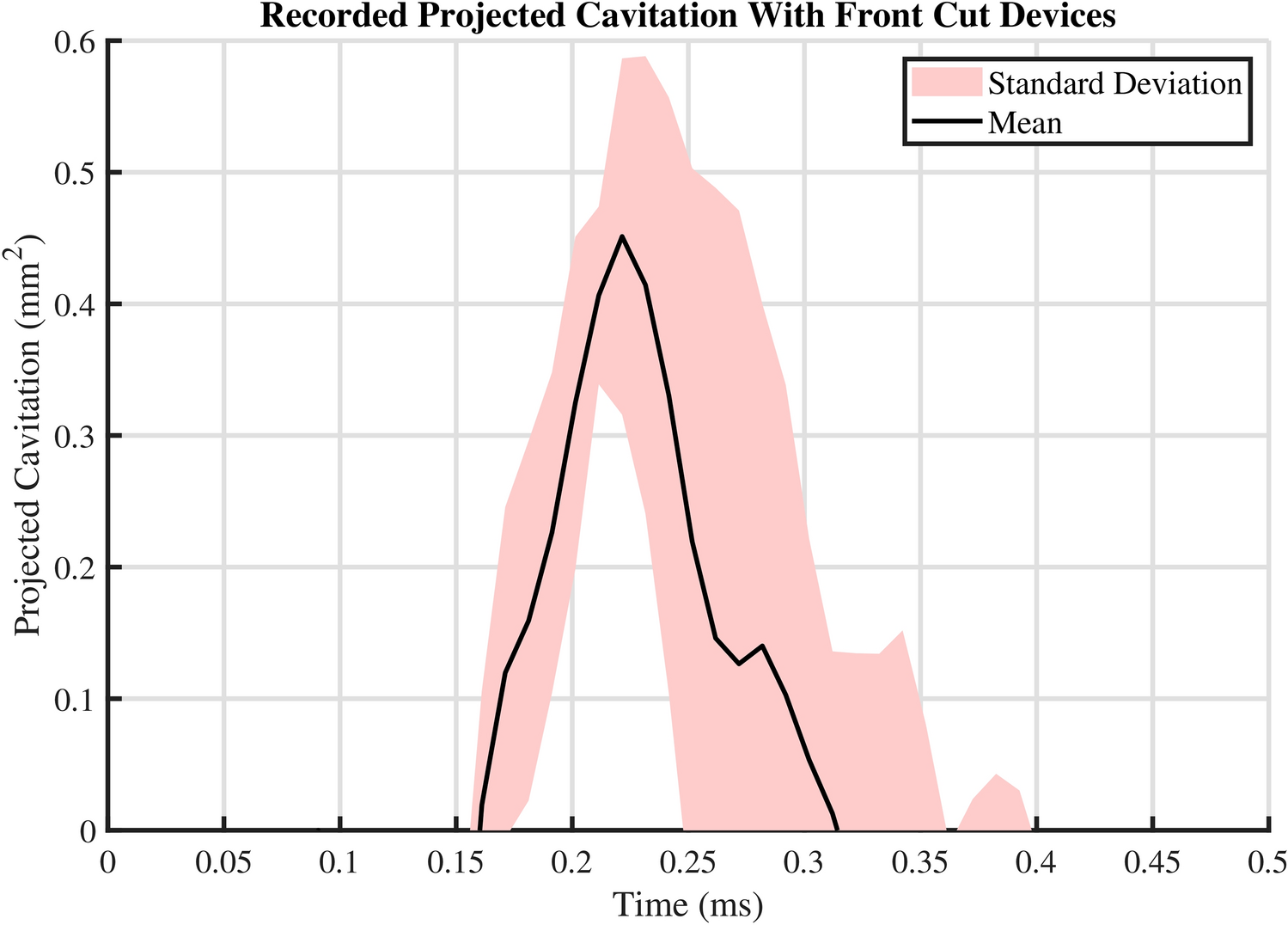

Recorded area of projected cavitation bubbles with 14 gauge front cut model needles shot inside deionized water. The dataset contains a total of \(\text {N}=9\) samples from \(\text {n}=3\) different devices of the same model, yielding 3 technical replicates for each device. The presented mean and standard deviation are calculated from all of the 9 recorded samples for each time point.
