Fig. 16
From: A framework for handweaving robotic textiles with liquid crystal elastomer fibers

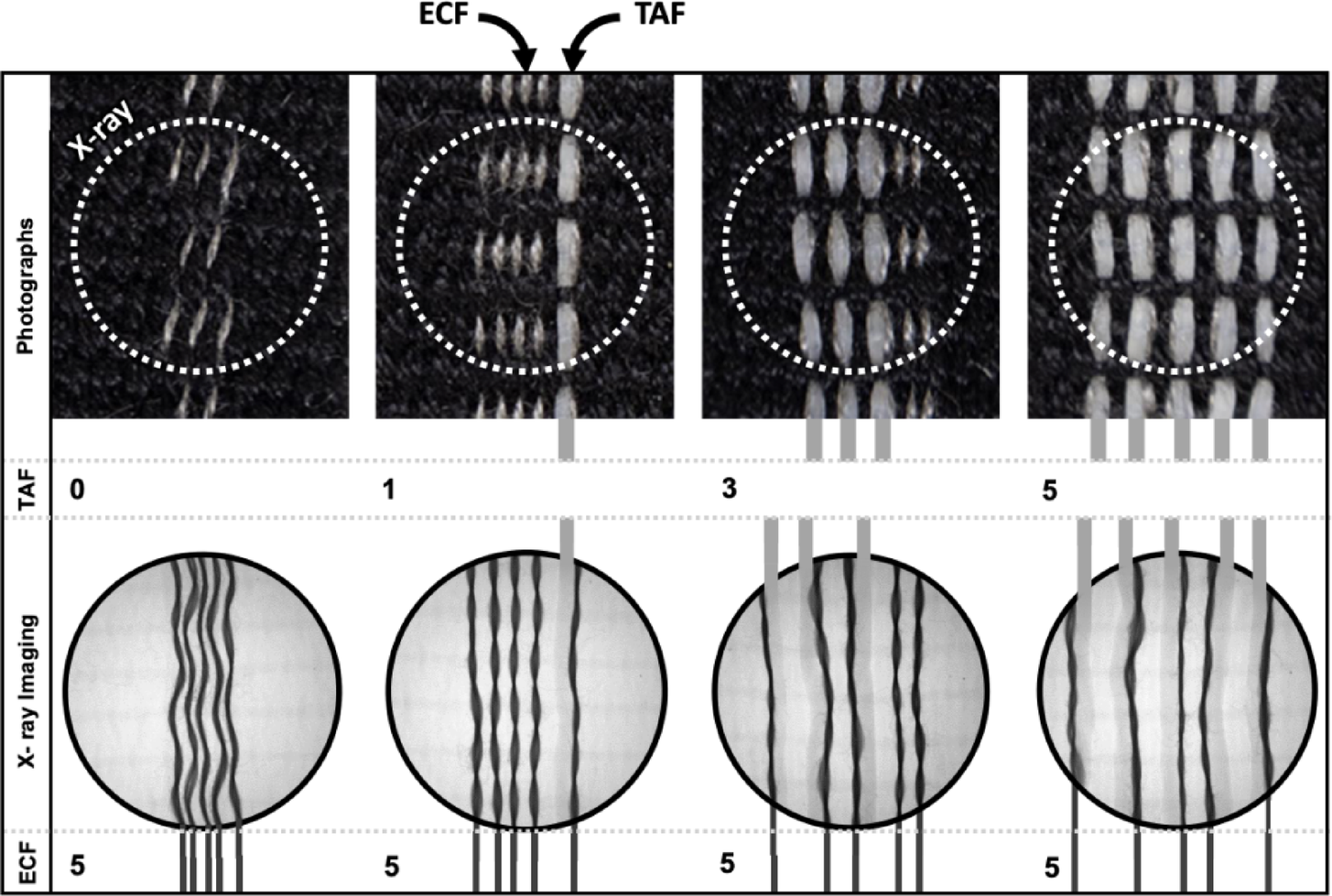

Photographs and their corresponding X-ray transmission images of four samples with zero, one, three, and five thermally actuating fibers (TAF), and five electrically conductive fibers (ECF). In these images, the circular regions each measure ca. 10Â mm in diameter.
