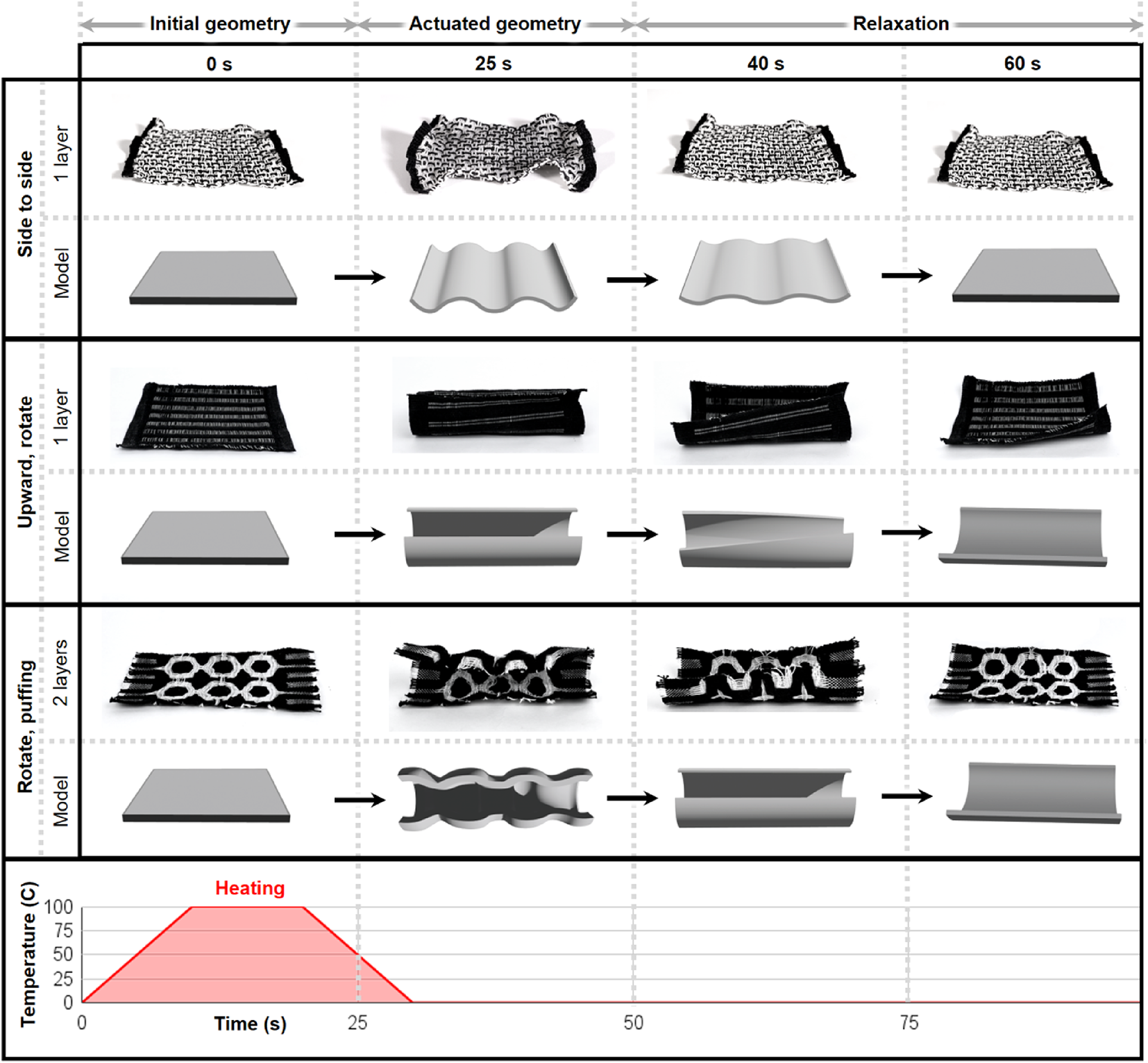

Fig. 9
From: A framework for handweaving robotic textiles with liquid crystal elastomer fibers
Diagrams illustrating basic actuation modes when subjected to external heating for 30Â s (side to side, upward, rotational, and puffing movements) for single and double-layered fabrics over time.
