Fig. 9

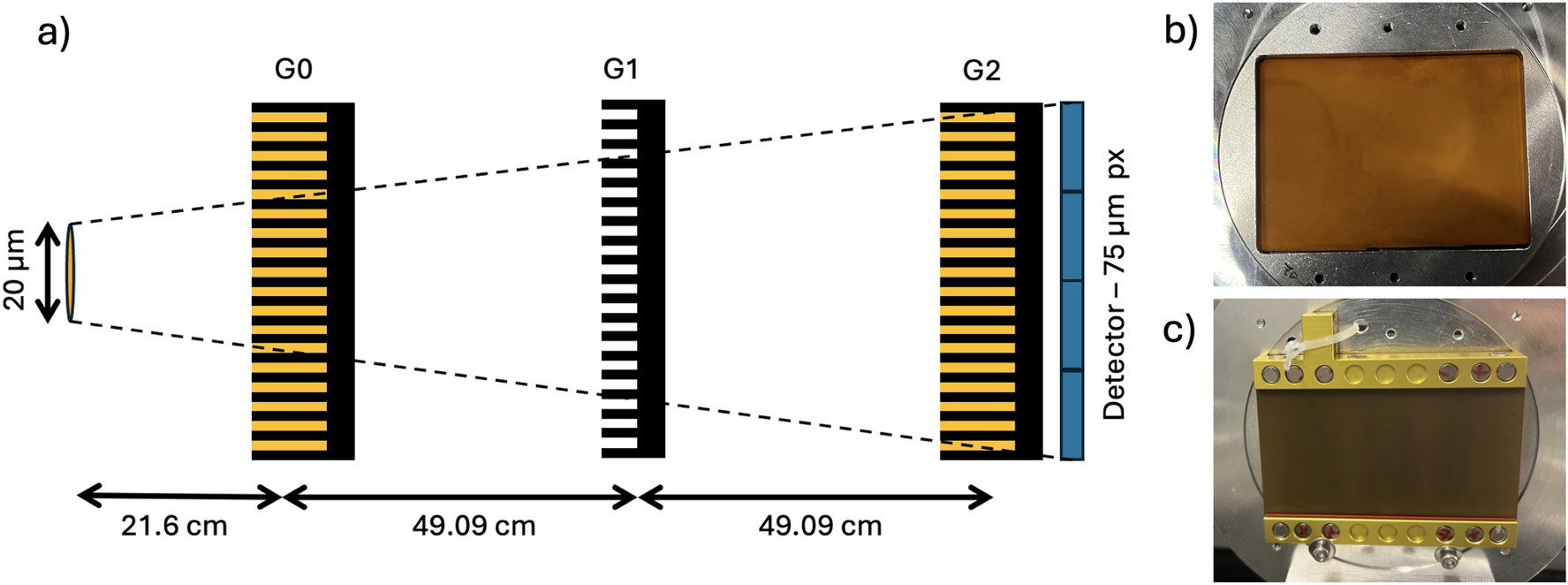

(a) Setup configuration of an XGI with all gratings mounted. The gratings were all mounted flat - except for G0 of X-LIGA, which was kept at its natural state of 30 cm bending radius. (b, c) DRIE and X-LIGA grating mounted on the holders, respectively. These gratings were used as G2.
