From: Integrated multi-omics analysis and experimental verification reveal the involvement of the PI3K/Akt signaling pathway in myometrial fibrosis of adenomyosis

Fig. 5

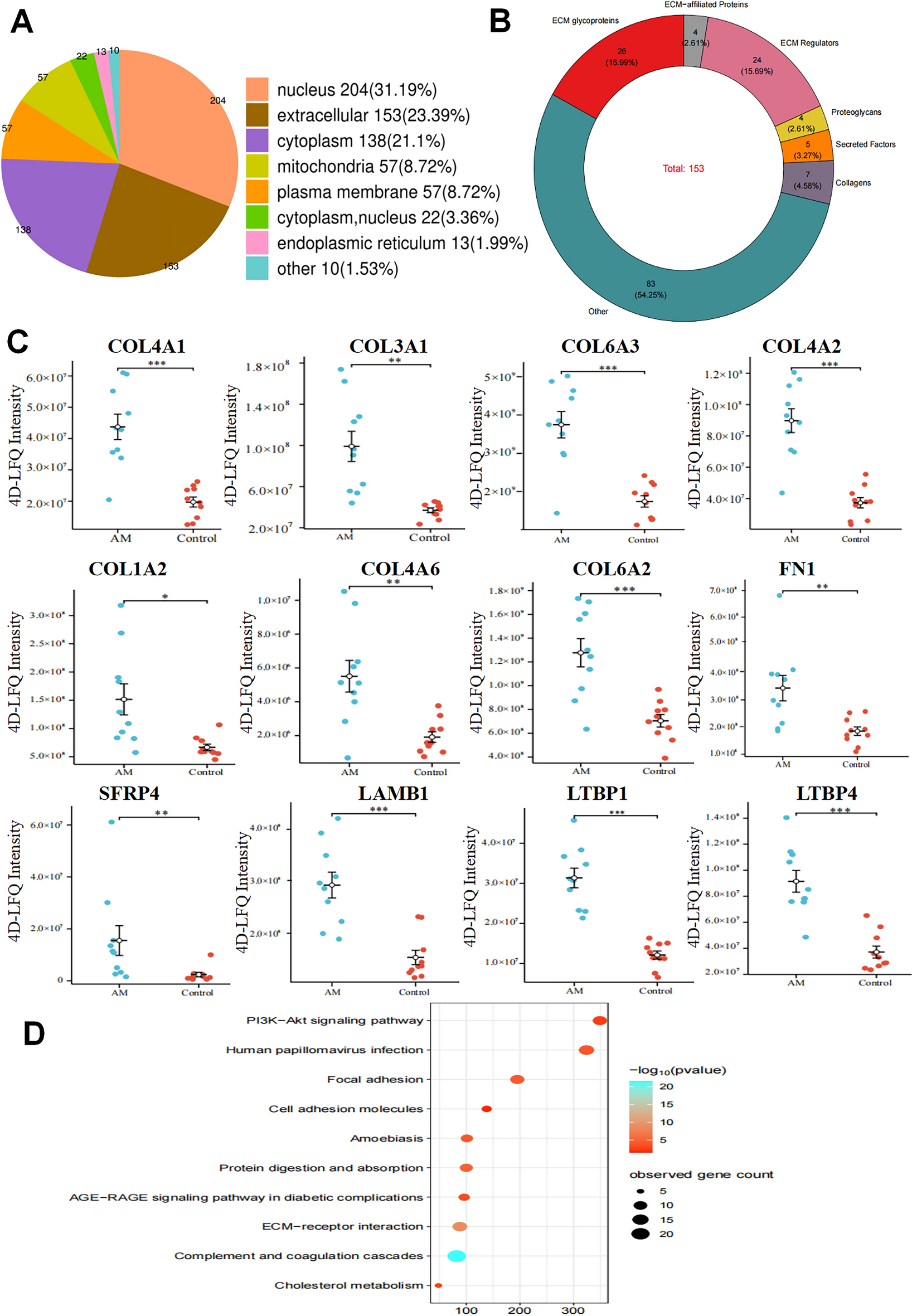

Quantitative analysis of the extracellular matrix (ECM) proteins between normal myometrium (Control) and fibrotic adenomyotic myometrium(AM). (A) Subcellular localization of DEPs. (B) The pie chart shows the numbers of each category of all quantified differential ECM proteins. (C) The 4D label-free quantified (LFQ) expression of partial ECM proteins in normal myometrium(Control) and fibrotic adenomyotic myometrium (AM) (n = 10 independent samples, *P < 0.05 and **P < 0.01). (D) Bubble plot of KEGG pathway enrichment analysis of ECM protein network.
