Fig. 4

From: Ecotoxicological effects of titanium dioxide nanoparticles on the freshwater mussel Lamellidens marginalis: physiological disruption, oxidative stress, and ecological implications

Fig. 4

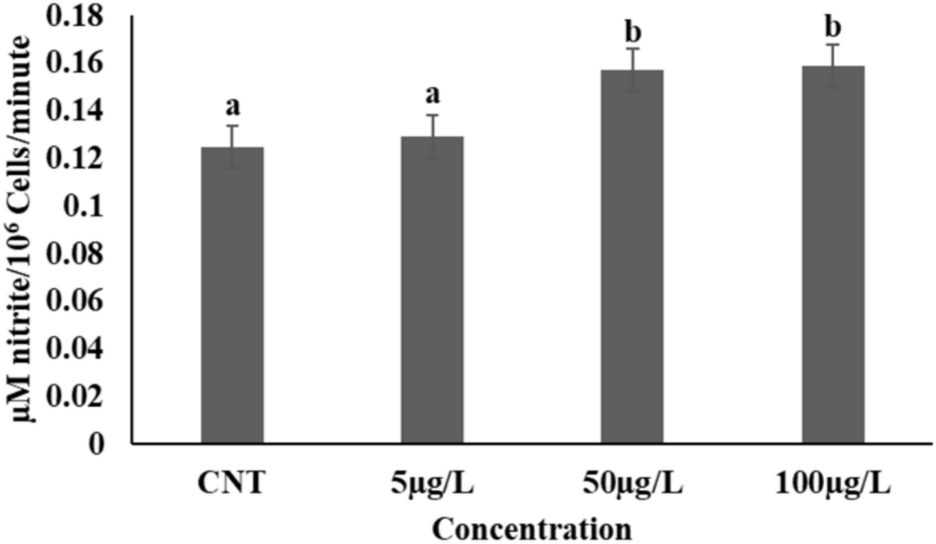

Generation of nitric oxide in the hemocytes of L. marginalis exposed to TiO2 after 7 days at each condition (CNT, 5, 50 and 100 µg/L). The data are represented as mean ± SD and significant differences (p ≤ 0.05) among concentrations for each are represented with different letters (lower case letters).
