Fig. 4
From: A fractal gripper with switchable mode for geometry adaptive manipulation

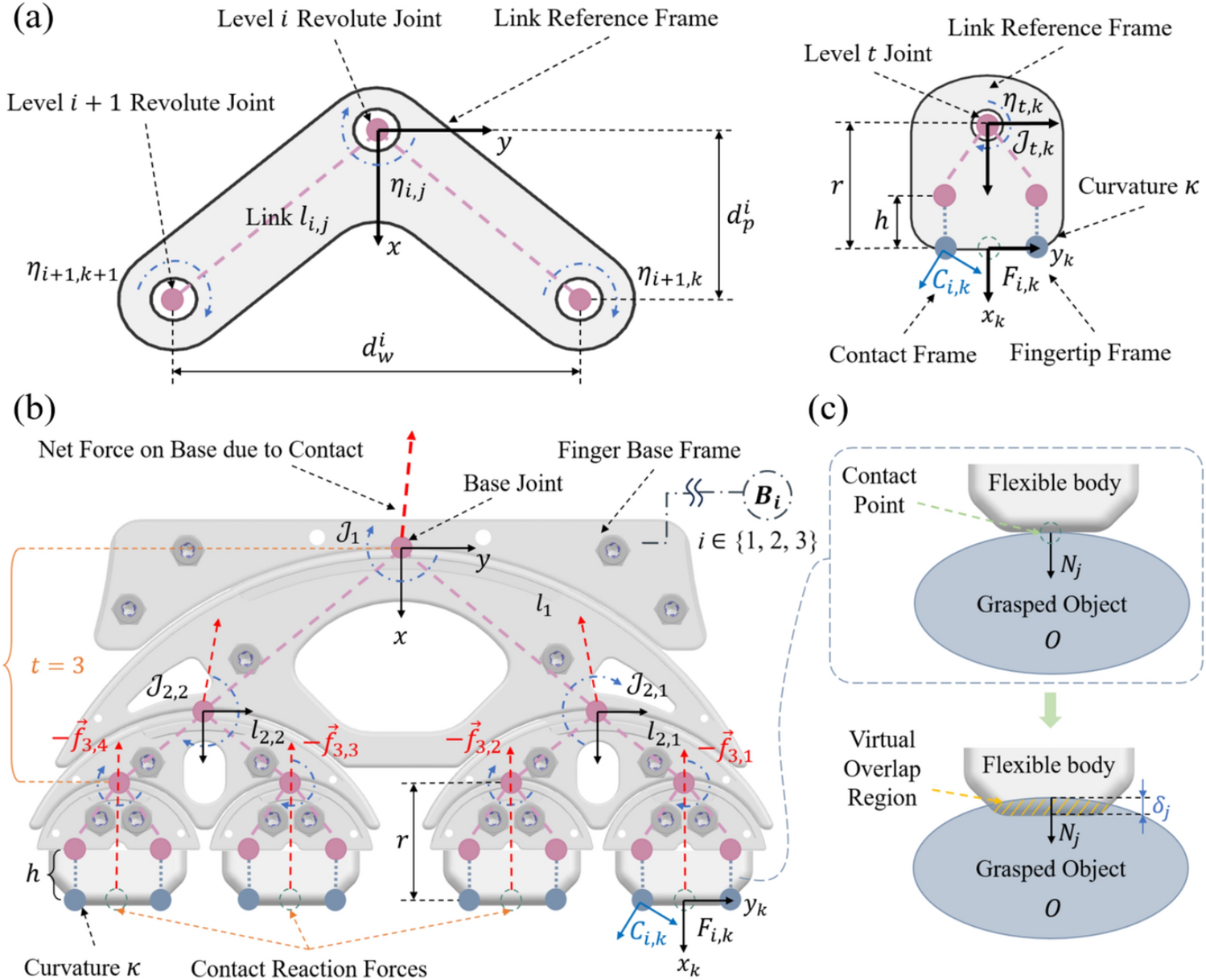

Geometry and description of the fractal finger. (a) Diagram of the geometrical structure of the fractal finger and the fingertip Link. (b) Diagram of the torque balance condition. (c) Diagram of the overlap model of the fingertip with the object.
