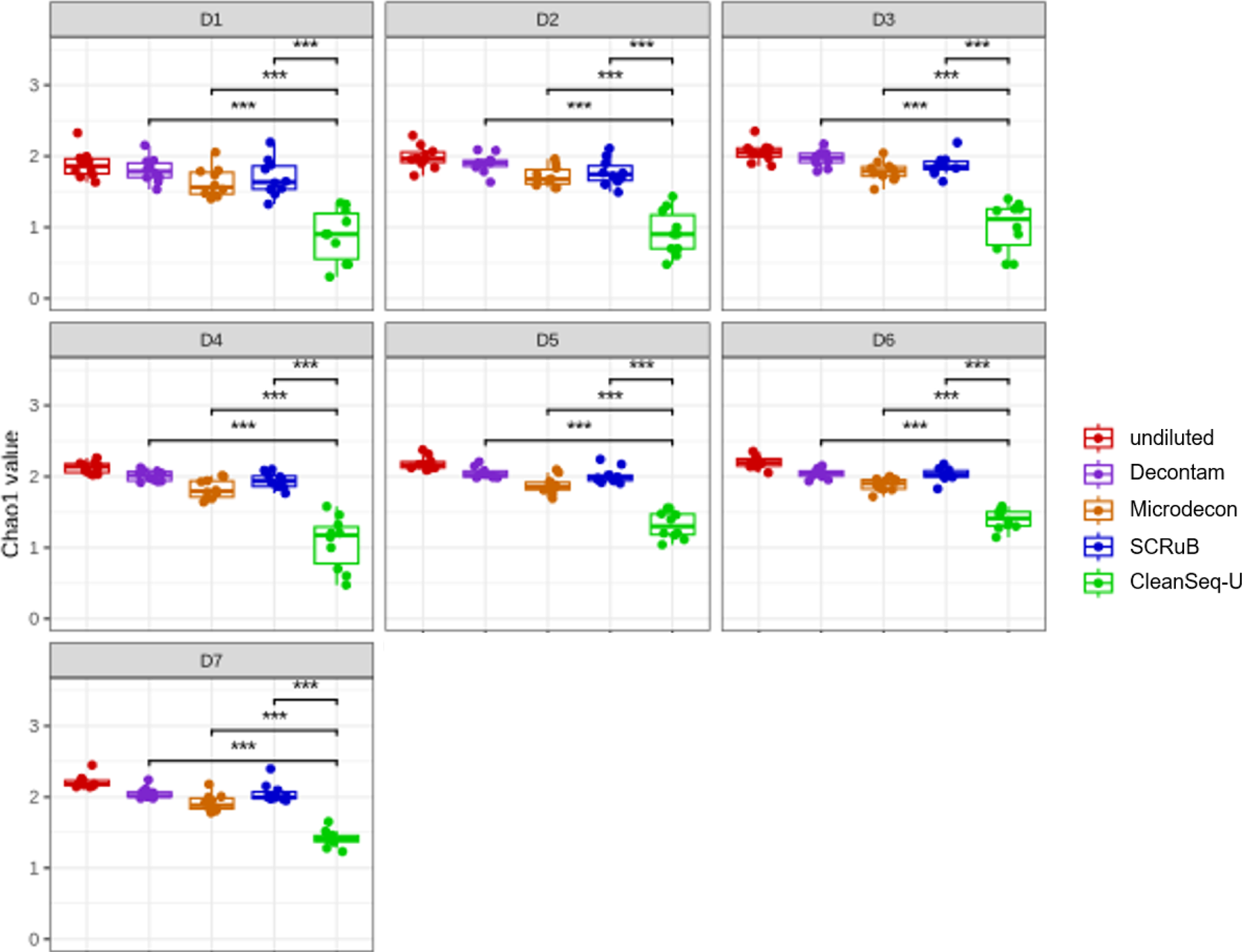

Fig. 5
From: CleanSeqU algorithm for decontamination of catheterized urine 16S rRNA sequencing data
Alpha diversity calculated by Chao1 estimating species richness showed that more types of ASVs usually were removed by CleanSeqU than Decontam, Microdecon, and SCRuB across all dilution stages. An asterisk (***) indicates that Wilcoxon rank P < 0.001.
