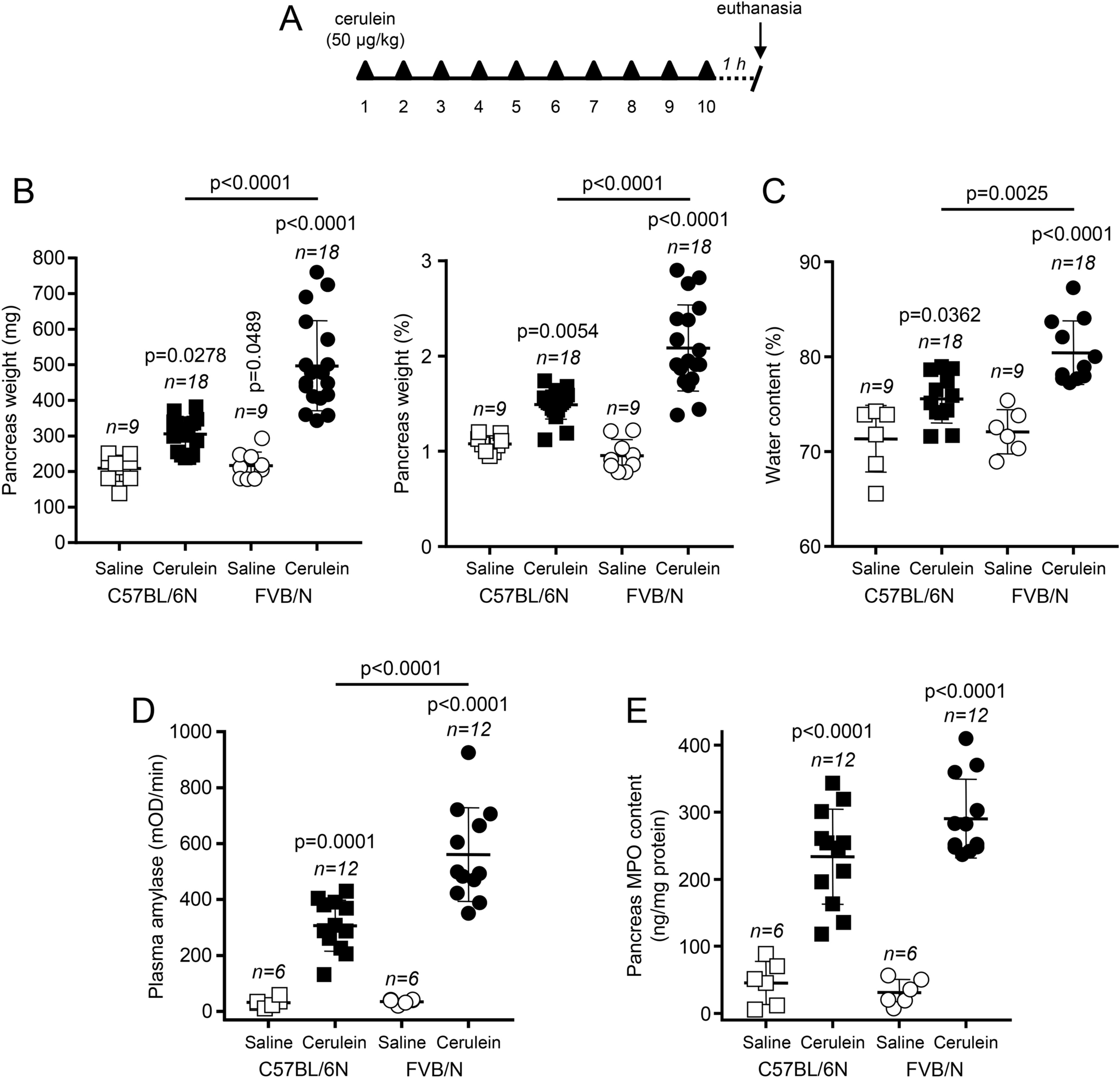

Fig. 1
From: Strain-specific differences in cerulein-induced acute and recurrent acute murine pancreatitis
Cerulein-induced acute pancreatitis in C57BL/6N and FVB/N mice. (A) Experimental protocol. Solid triangles indicate injections of saline or cerulein. Mice were euthanized 1 h after the last injection. (B) Pancreas weight in mg units and expressed as percent of body weight. (C) Pancreatic water content. (D) Plasma amylase levels. (E) Pancreatic myeloperoxidase (MPO) content. Individual data points with the mean and standard deviation are shown. The difference of means between groups was analyzed by one-way ANOVA and Tukey’s post-hoc test.
