Fig. 1

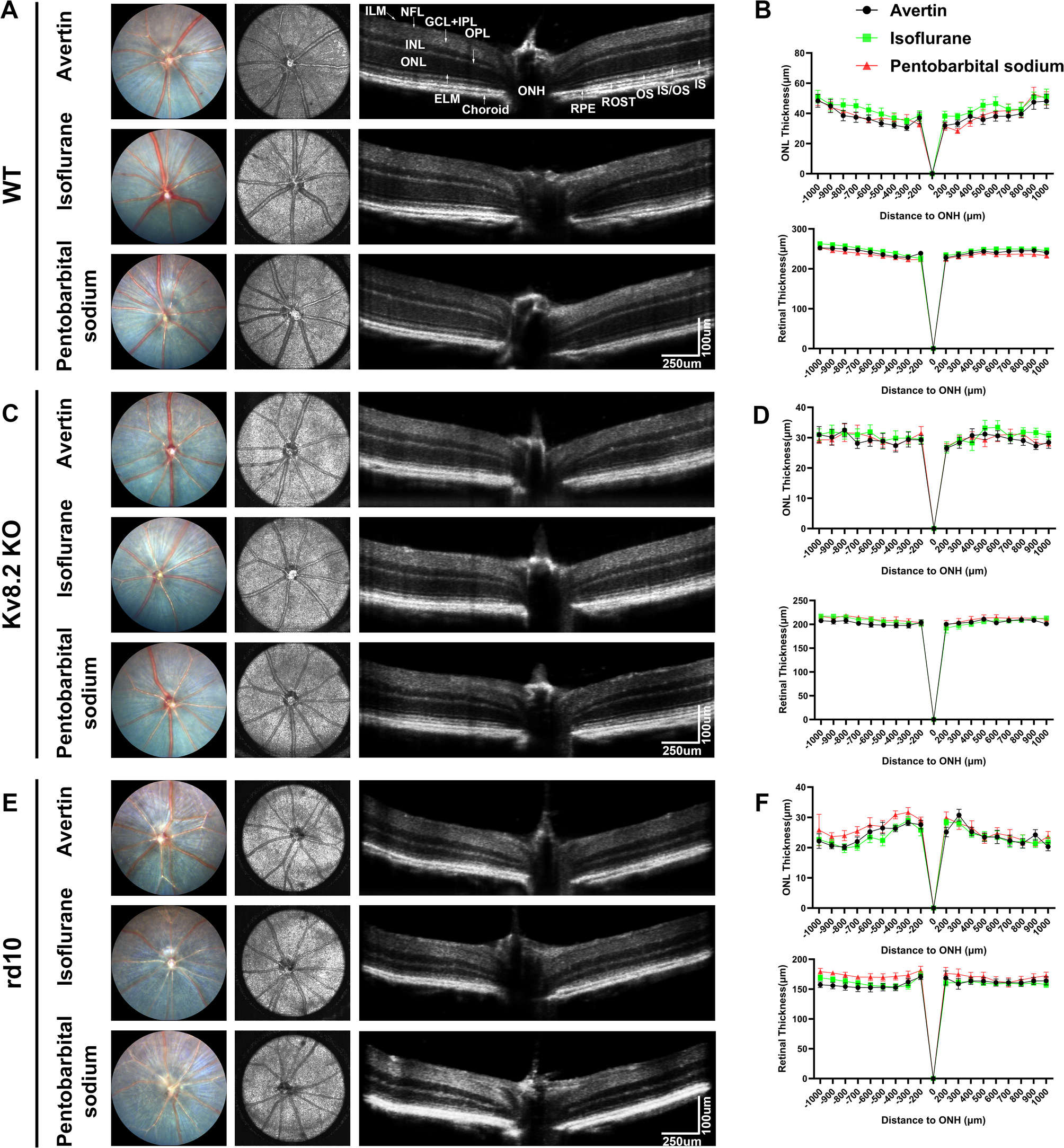

Fundus images and OCT. (A) The left and right columns displayed fundus images and OCT of WT mice, respectively. The center column showed the optic nerve position in the process of OCT acquisition. (B) ONL and retina thickness measurement in WT mice. (C) Fundus images and OCT of Kv8.2 KO mice. (D) ONL and retina thickness measurement in Kv8.2 KO mice. E, Fundus images and OCT of rd10 mice. F, ONL and retina thickness measurement in rd10 mice. OCT images, the left side corresponding to the lower visual field. OCT optical coherence tomography; WT wild-type; KO knockout; ILM inner limiting membrane; NFL nerve fiber layer; GCL ganglion cell layer; IPL inner plexiform layer; INL inner nuclear layer; OPL outer plexiform layer; ONL outer nuclear layer; OLM outer limiting membrane; IS inner segments; OS outer segments; IS/OS, inner segment/outer segment complex; ROST rod outer segment tips; RPE, retinal pigmented epithelium.
