Fig. 9 | Scientific Reports

Fig. 9

From: Radiation detector based on coupling between defect mode and topological edge state mode in photonic crystal

Fig. 9

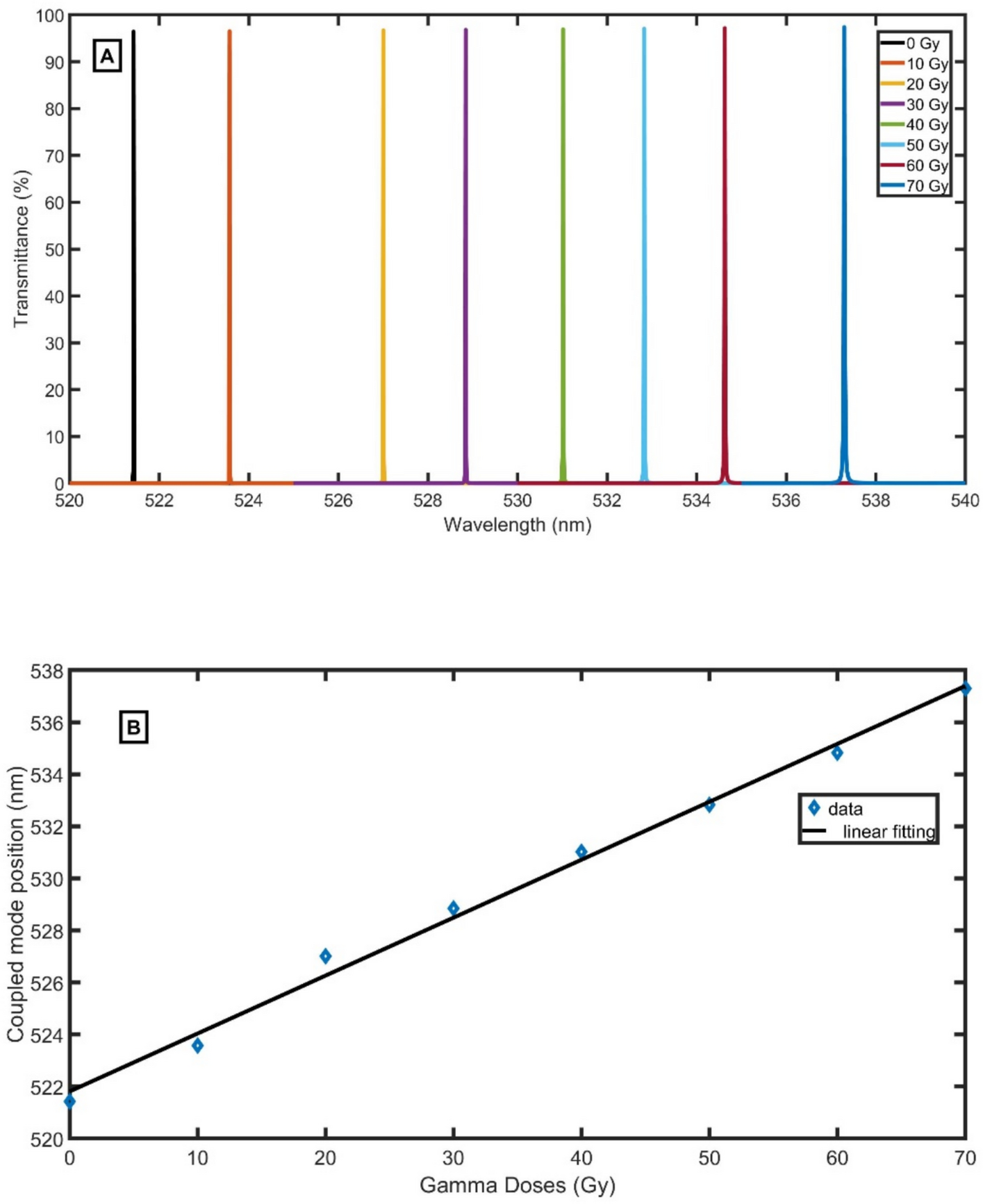

A T of the peaks of the defected SPC-GRD as \(\left[\text{Air}*{({PSi}_{1}*{PSi}_{2})}^{N}*\text{PNC }*{({PSi}_{2}*{PSi}_{1})}^{N}*\text{Substrate}\right]\) versus the γD at \({d}_{1}=100 \, \text{nm}\), \({d}_{2}=170 \, \text{nm}\), \({P}_{1}=20 \%\), \({P}_{2}=80 \%\), \({d}_{D}=900 \%\), and \(N=20\), and B the linear relation between coupled mode position and gamma doses.
