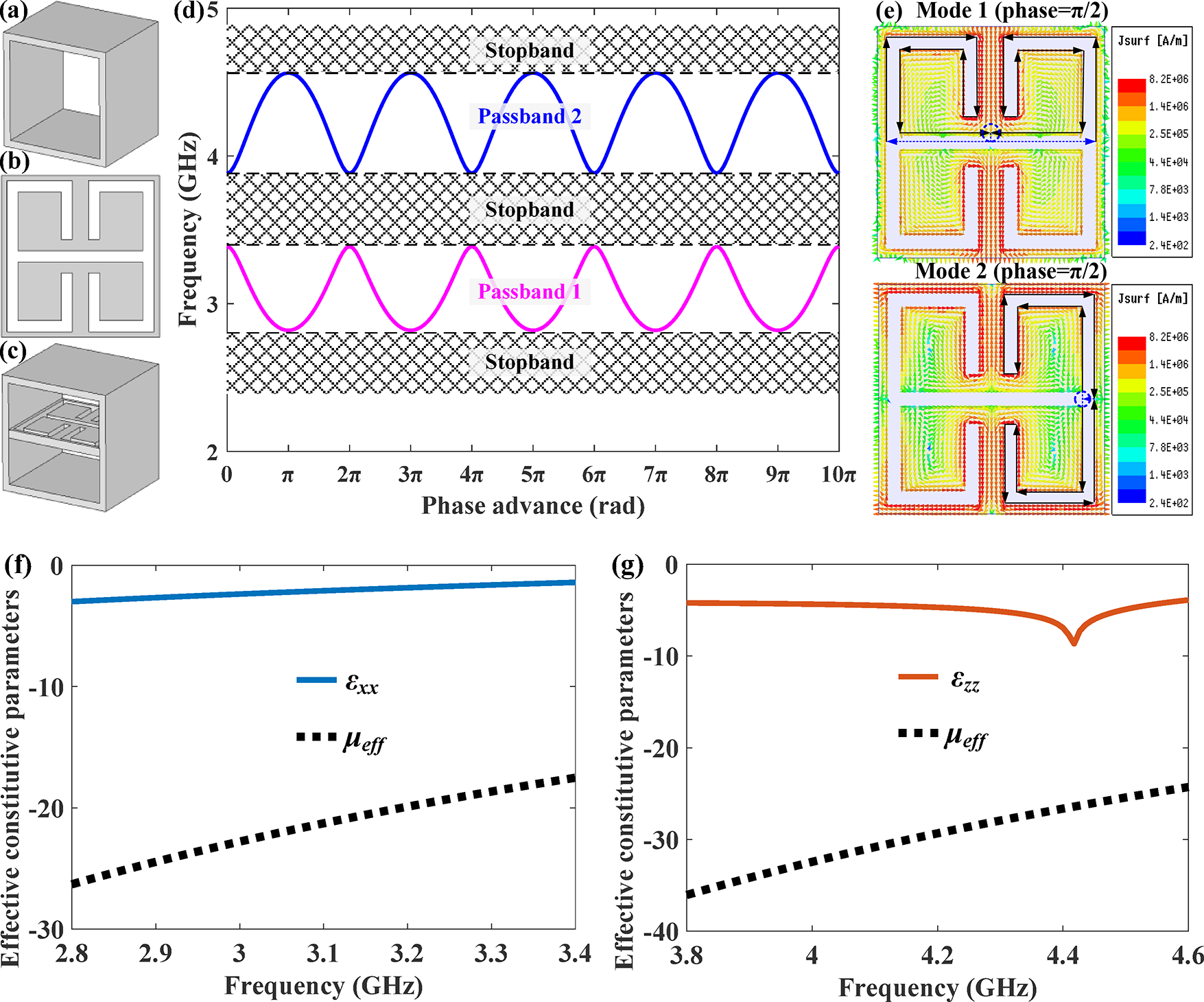

Fig. 1
From: Metamaterial conical beam antenna with dual band filtering response
(a) Hollow square waveguide, (b) CeSRR, (c) MTM unit cell, (d) dispersion curves for two modes of the MTM, (e) surface current distribution for two modes on the CeSRR, effective constitutive parameters for (f) mode 1 and (g) mode 2.
