Fig. 12

From: Remote sensing mapping of structural and hydrothermal alteration in the mougueur inlier, Eastern high atlas, Morocco

Fig. 12

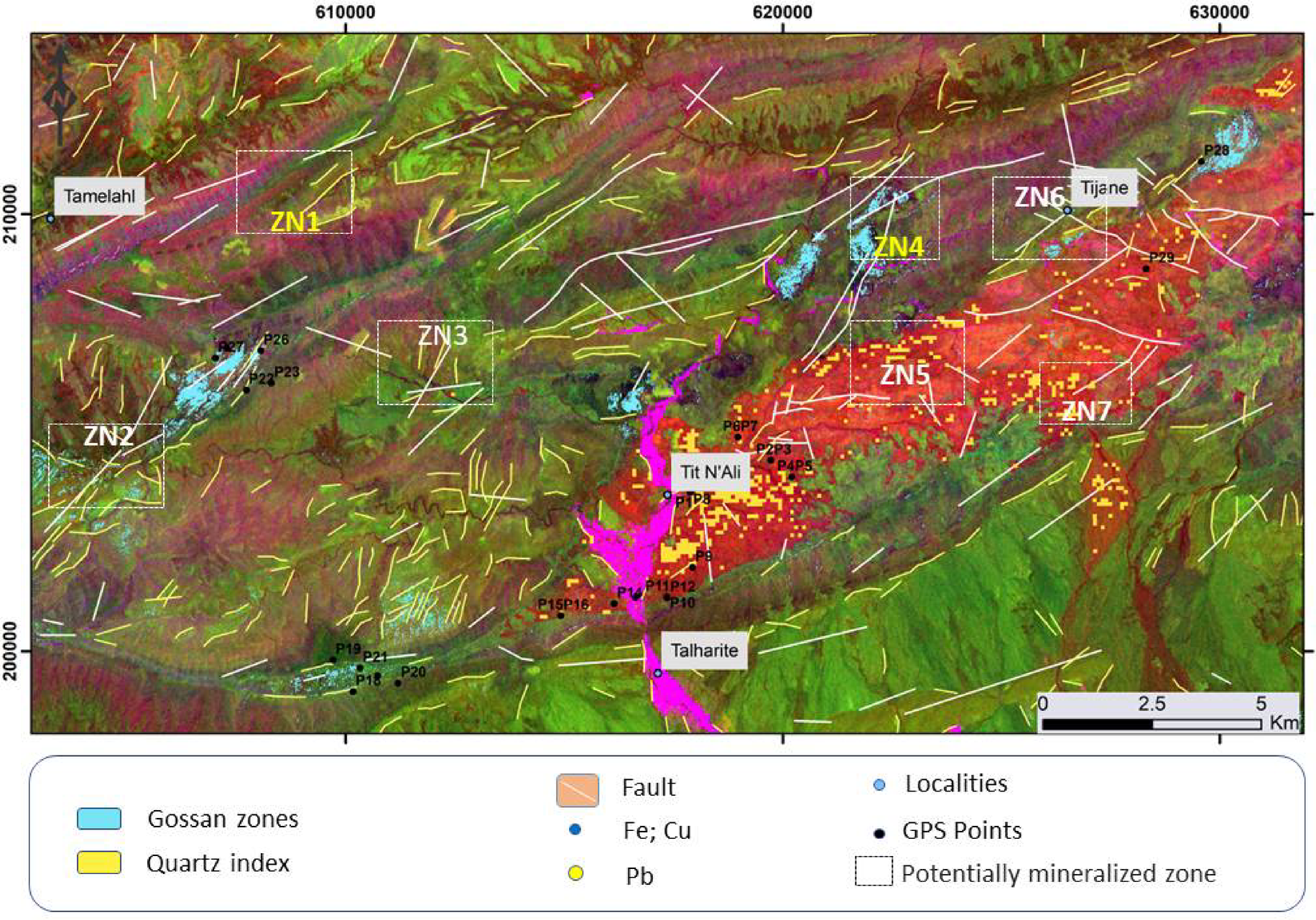

Spatial overlay of lineament and mineral alteration maps, combined with field observations and known mineralizations, displayed over the ASTER RGB composite (5/7, 3/1, 4/3), highlighting prospective mineralized zones (ZN1–ZN6). The figure ArcGIS Desktop 10.8. https://www.esri.com/en-us/arcgis/products/arcgis-desktop/overview, and ENVI v. 5.6.2. software; (https://www.l3harrisgeospatial.com/Software-Technology/ENVI).
