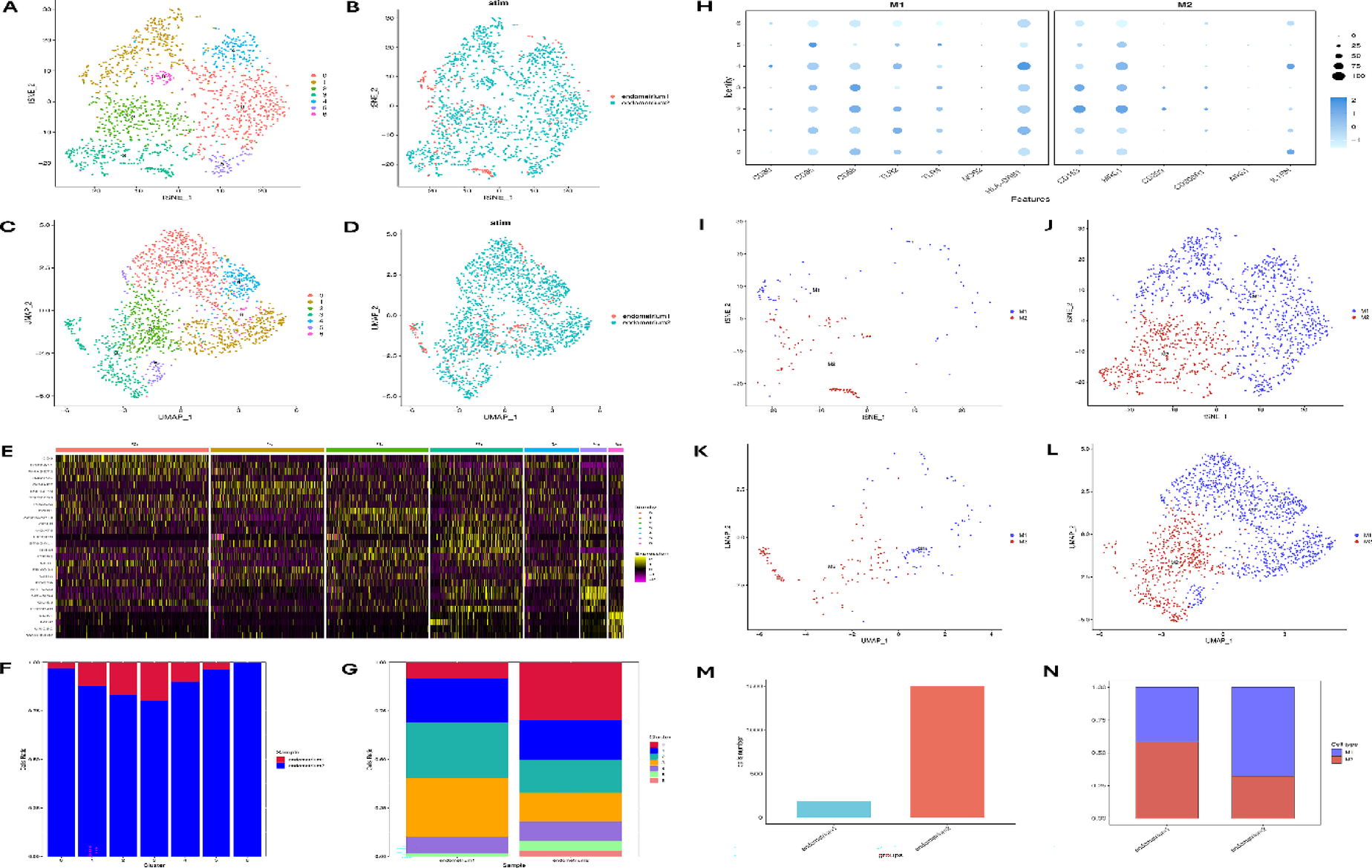

Heterogeneity and subtypes of macrophages in paired endometrial samples. (A) t-SNE map of macrophages in paired tissue samples. (B) t-SNE map of macrophages in pre- and post-PRP tissue samples. (C) UMAP plot of macrophages in paired tissue samples. (D) UMAP plot of macrophages in pre- and post-PRP tissue samples. (E) Heatmap of differentially expressed genes in macrophages from pre- and post-PRP tissue samples. (F) Numbers of macrophages in pre- and post-PRP tissue samples. (G) Proportions of macrophages in pre- and post-PRP tissue samples. (H) Detection of the cell markers used to assess the process of macrophage polarization. (I) t-SNE map of M1- and M2-type macrophages in paired tissue samples. (J) t-SNE map of M1- and M2-type macrophages in pre- and post-PRP tissue samples. (K) UMAP plot of M1- and M2-type macrophages in paired tissue samples. (L) UMAP plot of M1- and M2-type macrophages in pre- and post-PRP tissue samples. (M) Numbers of M1- and M2-type macrophages in paired samples. (N) Proportions of M1- and M2-type macrophages in paired samples.
