From: The mechanism of maternal inheritance of glycolipid metabolism disorder in a zebrafish model of type 2 diabetes

Fig. 1

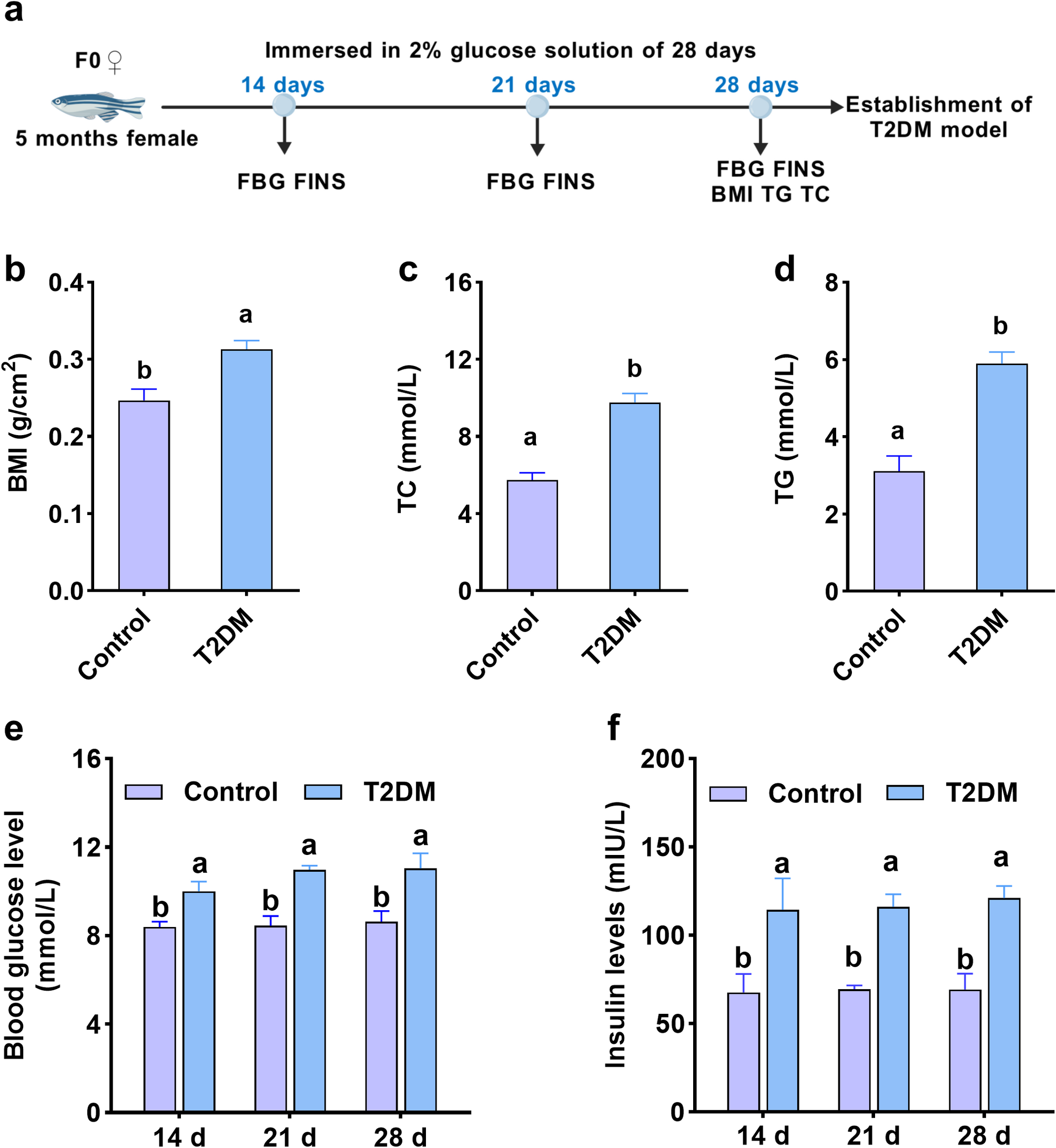

The body mass index (BMI), total cholesterol (TC), triglycerides (TG), fasting blood glucose (FBG) and insulin (FINS) in female zebrafish after 2% glucose immersion. (a) Experimental design for building type 2 diabetes mellitus (T2DM) model in female zebrafish. (b) BMI (n = 10 fish per group), (c) TC content (n = 6 biological replicates per group), (d) TG content (n = 6 biological replicates per group), (e) fasting blood glucose (n = 6 biological replicates per group) and (f) insulin content (n = 6 biological replicates per group). Values are presented as mean ± SEM. (T2DM: 2% glucose group). The different letters indicate significant differences among different treatments in the same generation (P < 0.05).
