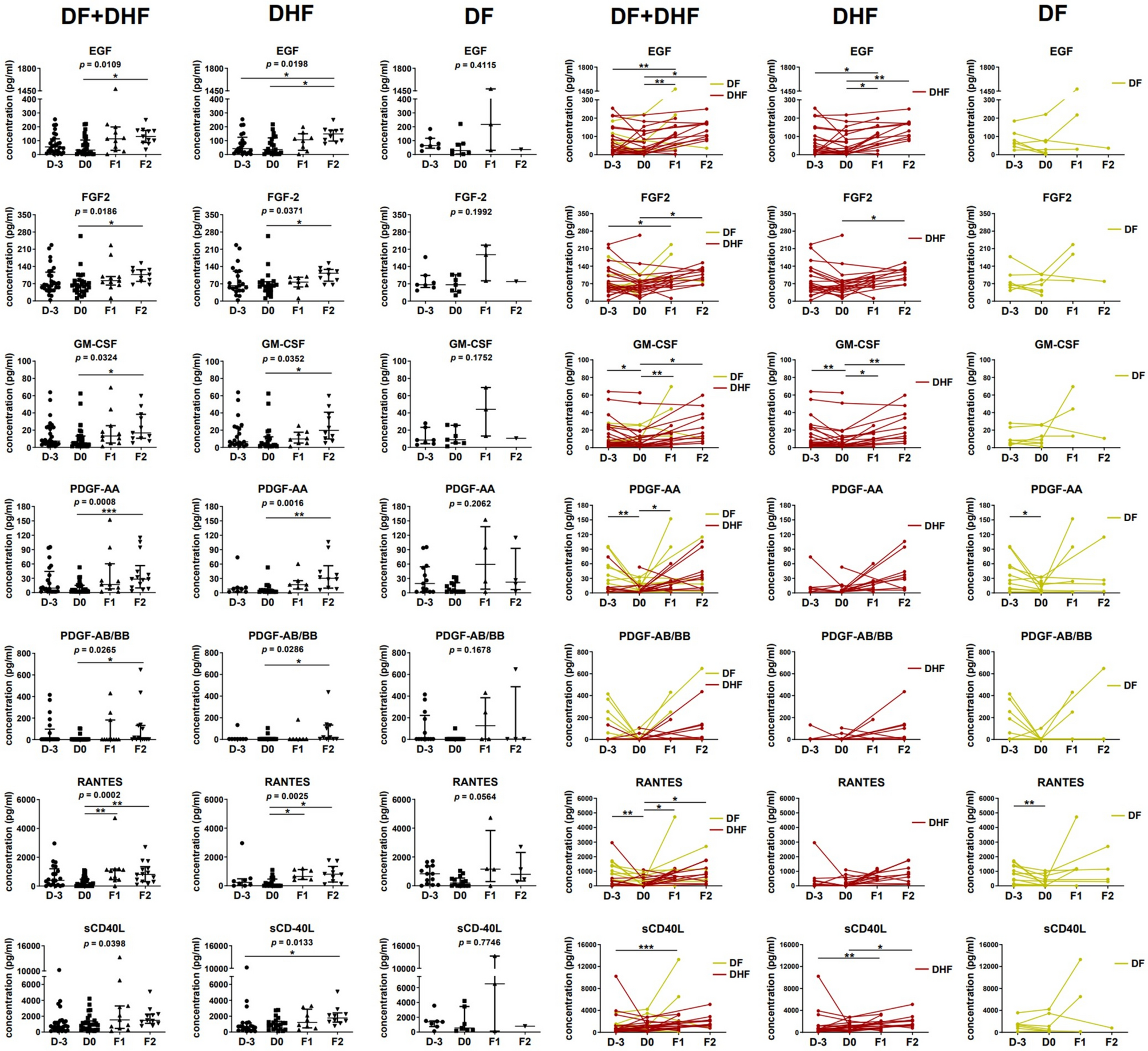

Fig. 4
From: Cytokine and chemokine kinetics in natural human dengue infection as predictors of disease outcome
Cytokines associated with convalescent dengue infection. Each dot represents the level of cytokine from each sample. The 3 left columns include all samples, Kruskal–Wallis test was used to compare 4 groups of independent data (p value indicated in each graph). median with interquartile range were shown in each group. Kruskal–Wallis statistics with Dunn’s multiple comparisons test were used to compare between 2 groups indicated. *p < 0.05, **p < 0.01, ***p < 0.001, ****p < 0.0001. Left most column: combined DF and DHF, second column: DHF only, third column: DF only. The 3 right columns include only dependent data from the same patients (line connect between paired samples). Wilcoxon matched-pairs signed rank test was used to compare between 2 groups indicated. *p < 0.05, **p < 0.01, ***p < 0.001, ****p < 0.0001. The 4th column: combined DF and DHF, 5th column: DHF only, 6th column: DF only.
