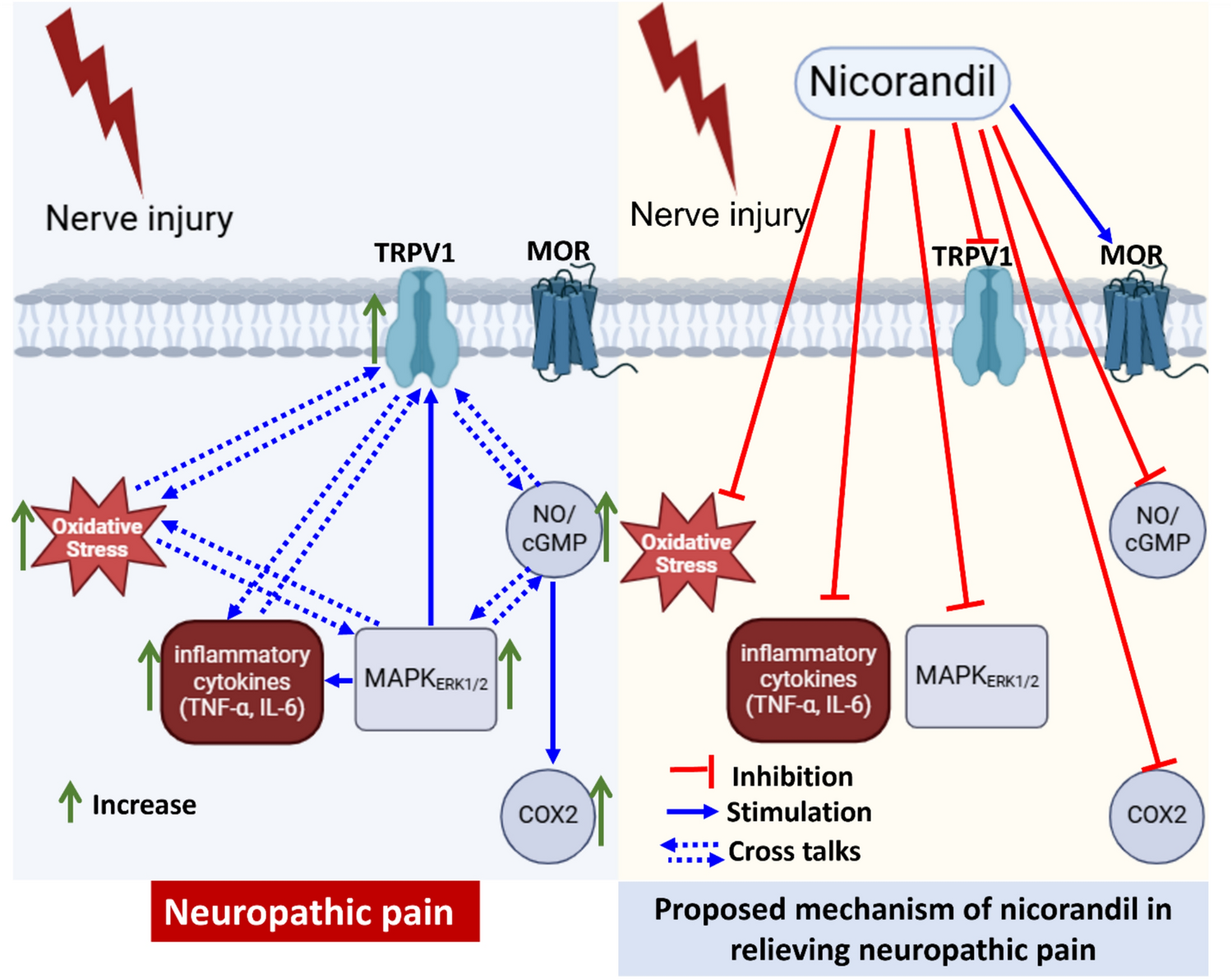

Proposed mechanism of nicorandil in relieving neuropathic pain. TRPV1, transient receptor potential vanilloid 1; MOR, µ opioid receptor; NO, nitric oxide; cGMP; cyclic guanosine monophosphate; TNF-α, tumor necrosis factor alpha; IL-6, interleukin 6; MAPKERK1/2; mitogen activated protein kinase (extracellular signal-regulated kinase 1/2); COX2, Cyclooxygenase2.
