Fig. 7 | Scientific Reports

Fig. 7

From: Network accessibility as the emergence of cliques

Fig. 7

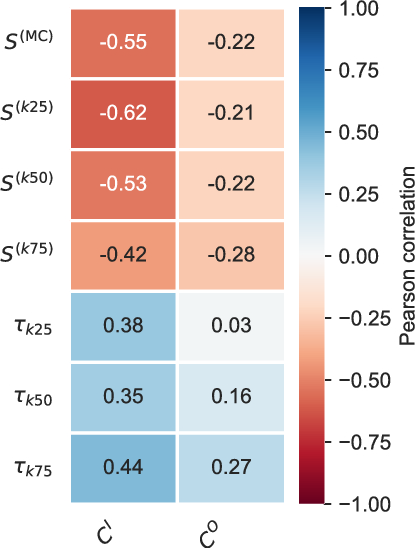

Pearson correlation matrix of the indicators and circuity measures. \(S^{(H)}\): cumulative accessibility indicators; \(\tau _{(H)}\): threshold accessibility indicators. \(C^I\): infrastructural circuity; \(C^O\): operational circuity. Blue and red shades represent positive and negative correlations, respectively.
