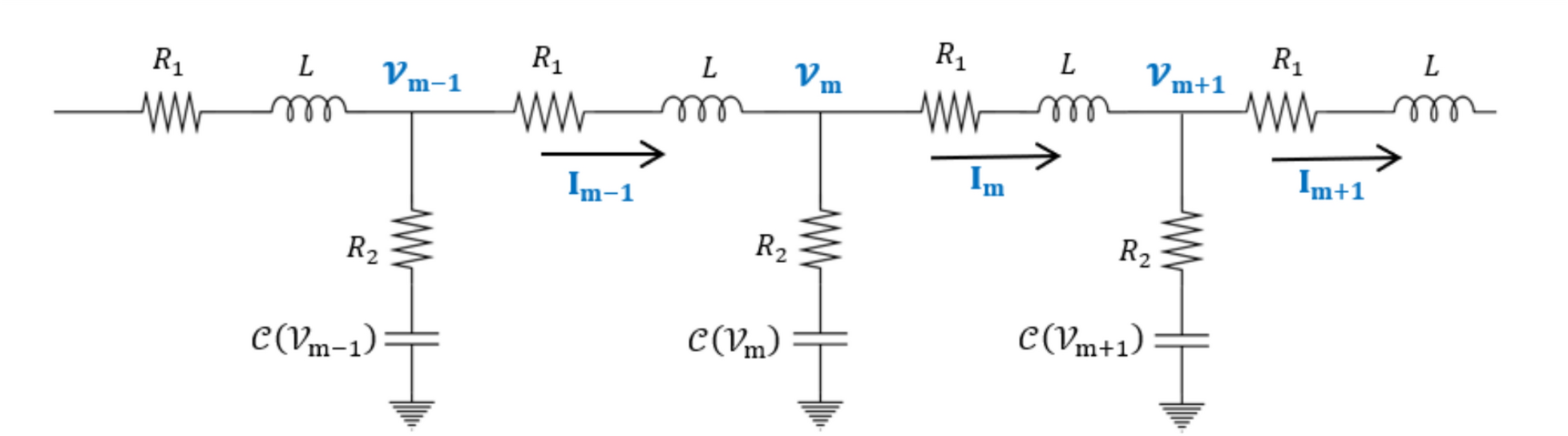

Fig. 1
Schematic of the Loss-NLETL circuit, showing a discrete nonlinear transmission line where each segment includes an inductor \(L\), series resistor \({R}_{1}\), nonlinear capacitor \(c\left({U}_{i}\right)\), and shunt resistor \({R}_{2}\).
