From: Comparative performance of activated sludge and waste stabilization ponds for the removal of pollutants and pathogens in full-scale wastewater treatment plants in Egypt

Fig. 5

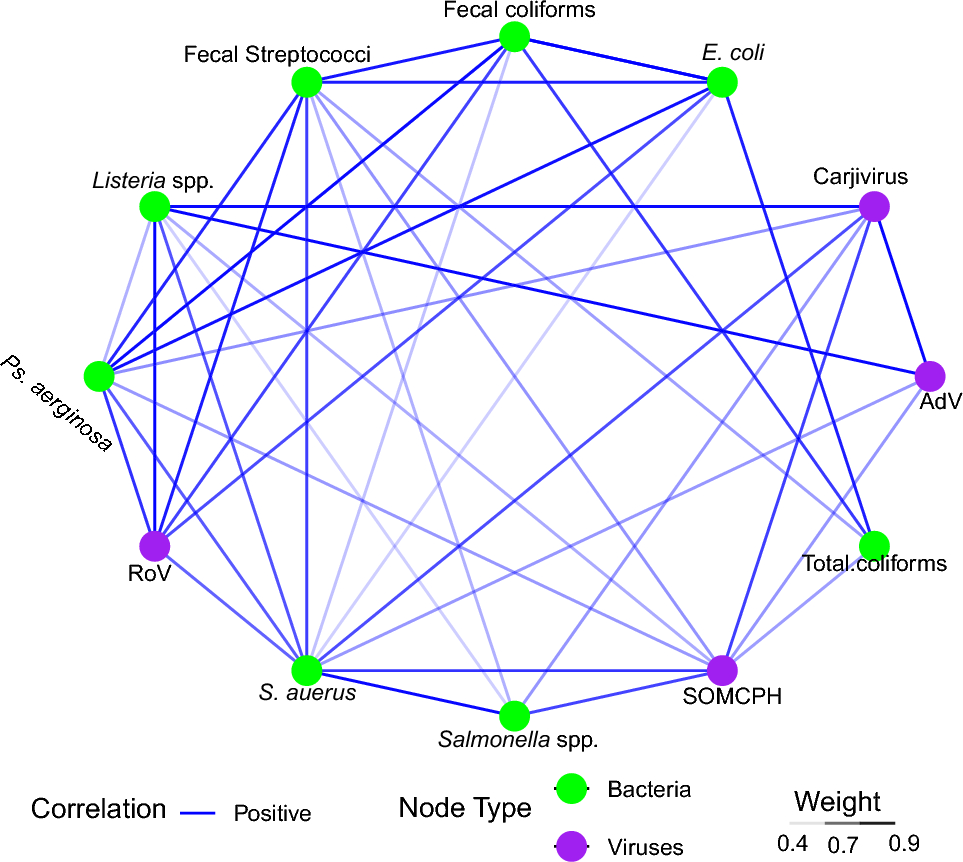

Correlation network between bacteria and viruses based on significant correlations (p < 0.05 and |r| > 0.3). Green nodes represent bacterial parameters, and purple nodes represent viral parameters. Blue edges denote positive correlations. The thickness and transparency of the edges correspond to the strength of the correlation, highlighting key interactions between bacterial and viral communities.
