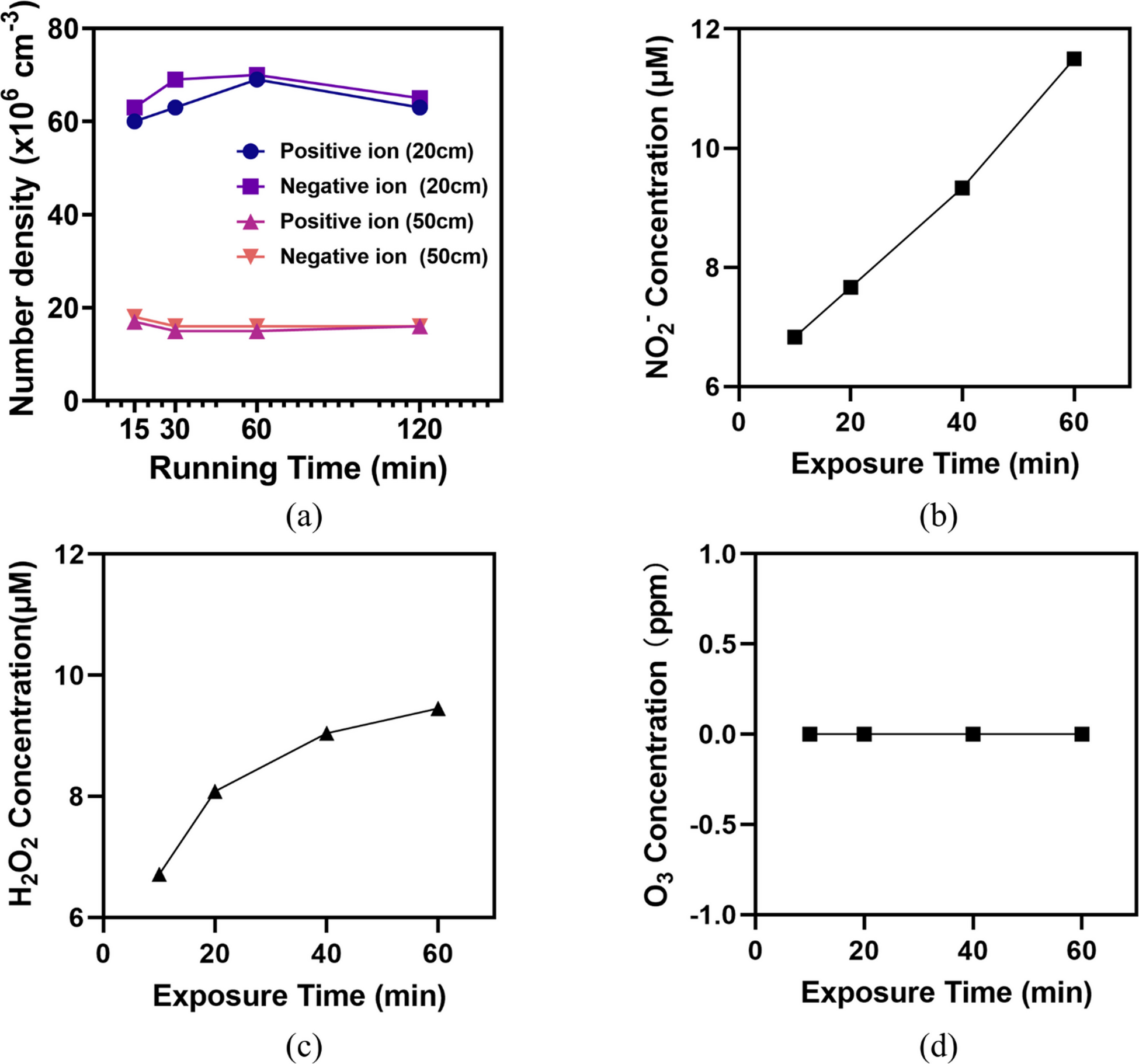

Fig. 6
From: Air-fed cold atmospheric plasma device as a safe and effective anti-SARS-CoV-2 air filter
(a) The concentration of positive and negative ions in the air measured at two different distances to the plasma outlet. (b) Concentration of NO2- in water. (c) Concentration of H2O2 in water. (d) Concentration of O3 in the air.
