Fig. 1 | Scientific Reports

Fig. 1

From: Identification of RBX1 as a regulator of LIPT1 transcription and its role in copper-induced cell death in GBM cells

Fig. 1

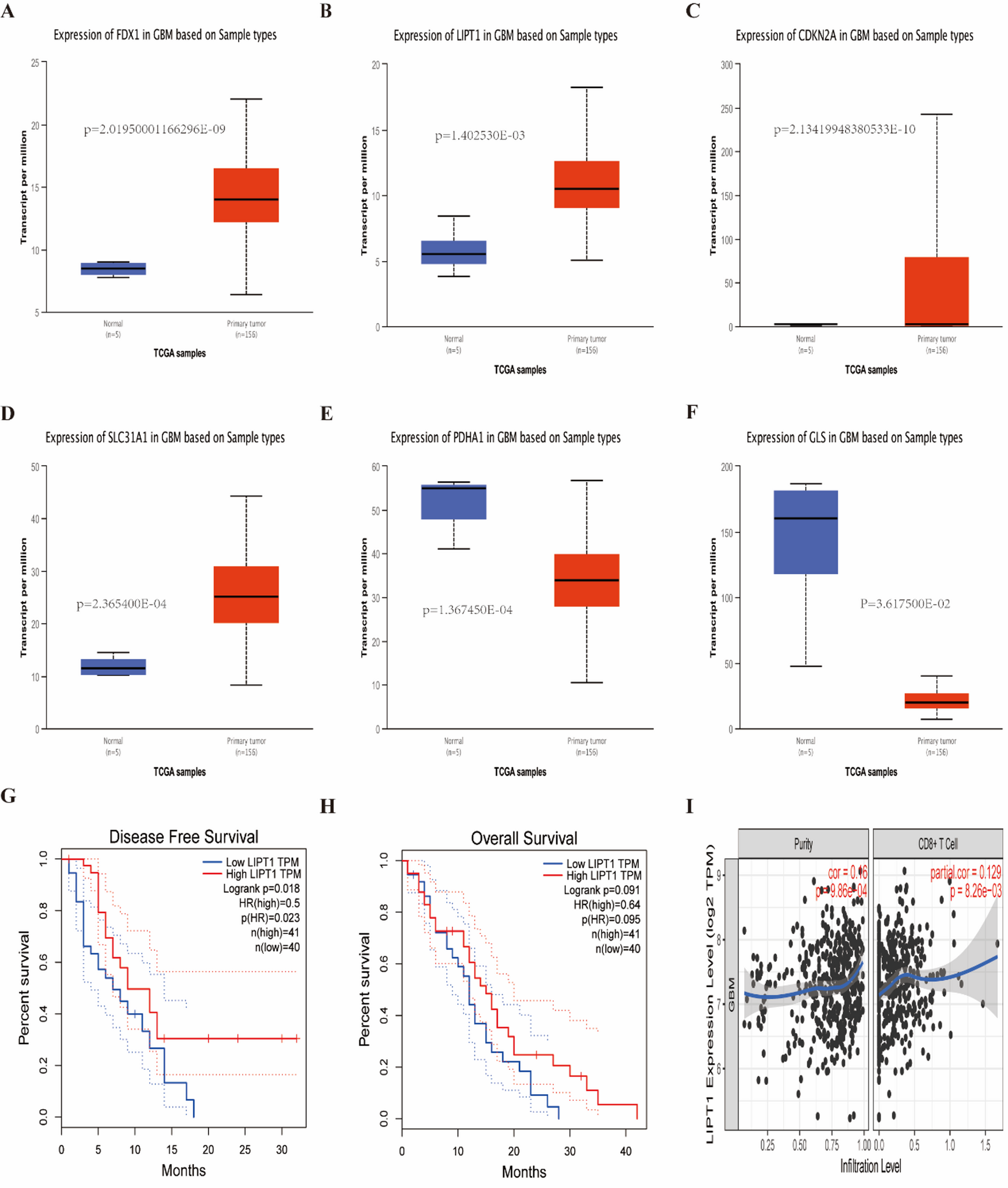

Shows the comprehensive analysis of CRGs in GBM. (A–F) UALCAN identified significantly differentially expressed CRGs (FDX1, LIPT1, CDKN2A, SLC31A1, PDHA1, GLS) in GBM.(G–H) GEPIA analyzed the prognostic significance of LIPT1 expression on recurrence-free survival (RFS) and overall survival (OS) in GBM patients. I, TIMER database analyzed the correlation between LIPT1 expression and CD8 + T cell infiltration in GBM.
