Fig. 1
From: Low-profile metasurface-backed wideband antenna array for mm-wave applications

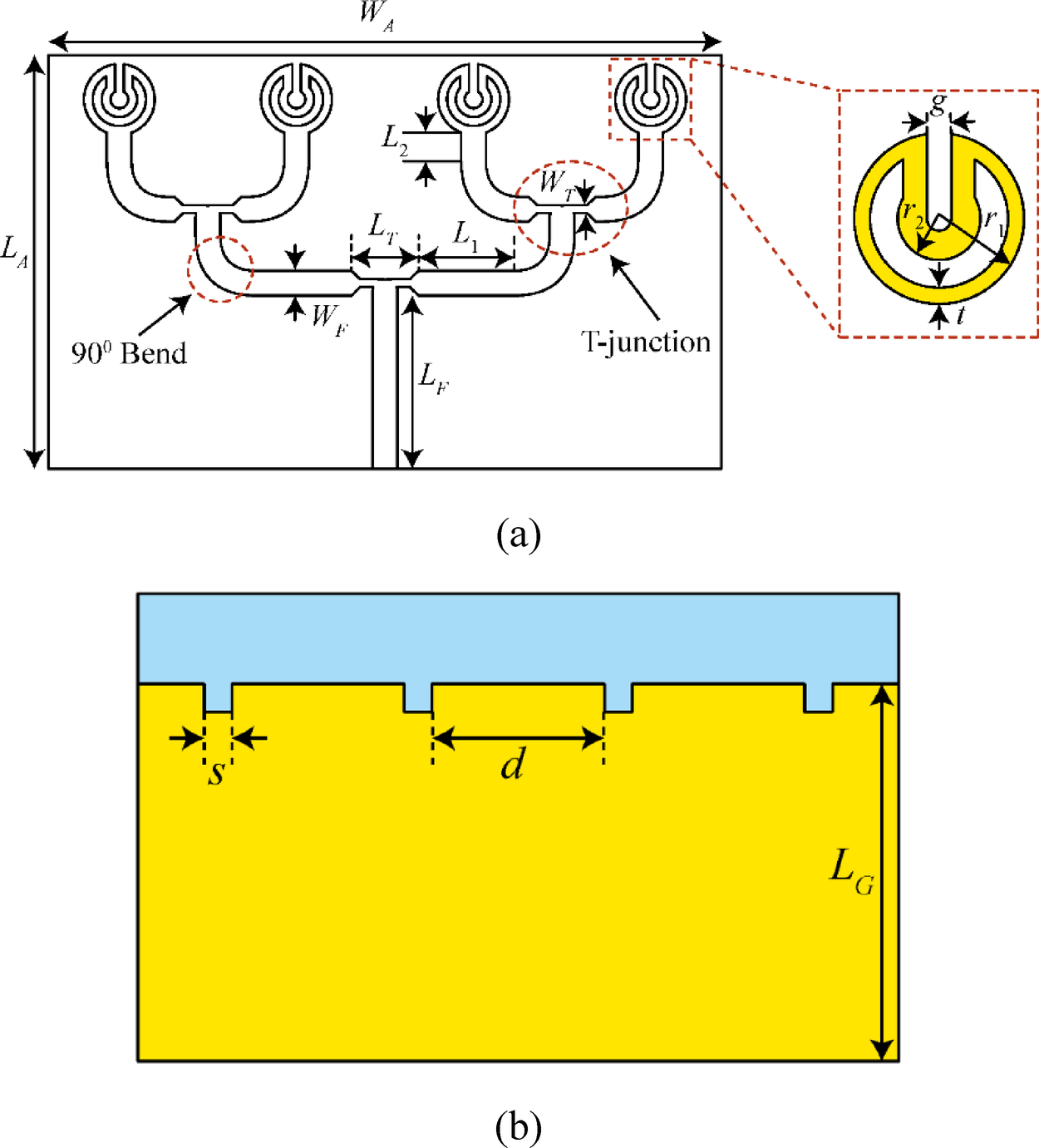

a Top- and b bottom-side of the 1 × 4 planar antenna array. The figure also shows the design of the broadband 1 × 4 corporate feeding network15. The dimensions are not to scale.
