Fig. 6
From: Interaction of pulsed low frequency electromagnetic field (PEMF) with mitochondria

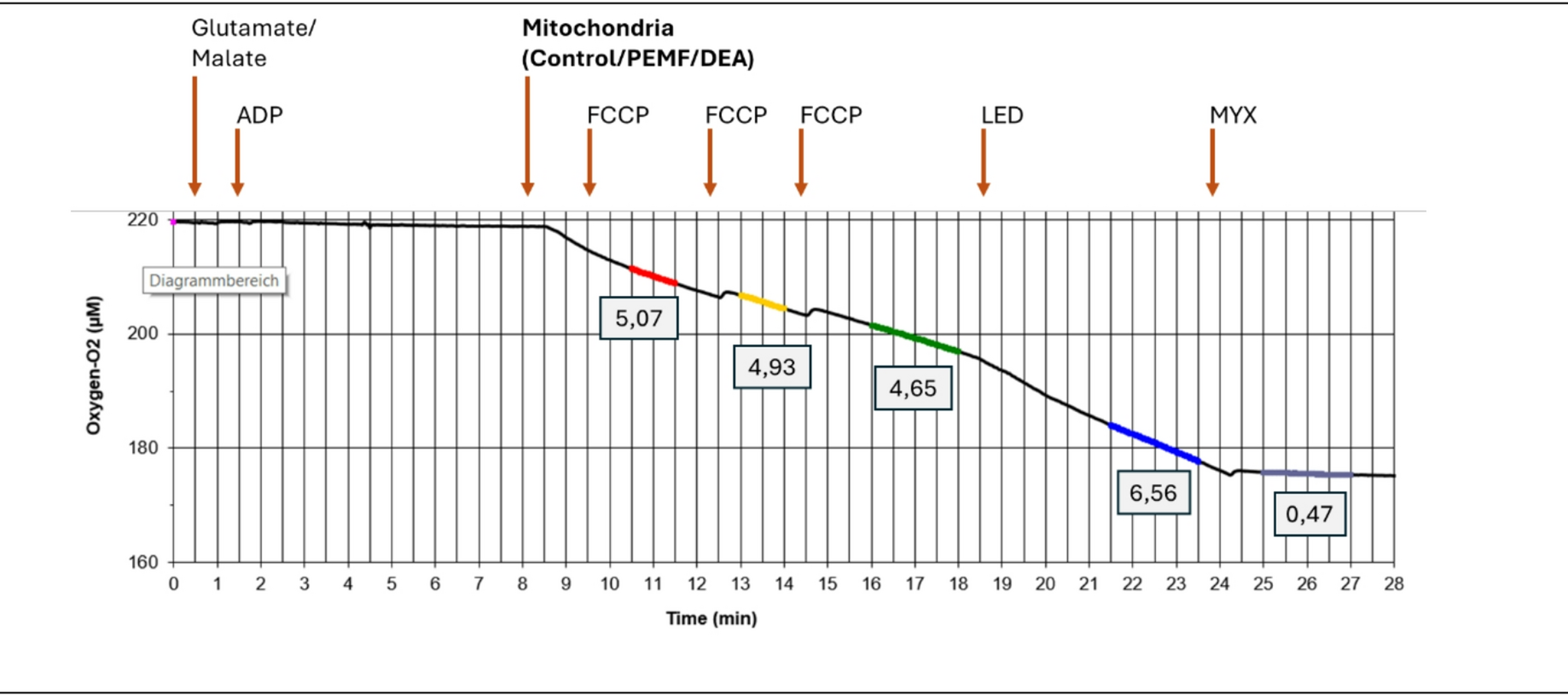

Example of calculating the mitochondrial respiration rate and the recovery effect of blue light. The segments selected for slope calculations are highlighted in different colors. The oxygen flux after myxothiazol treatment was subtracted from raw values. ADP –adenosine diphosphate; FCCP – carbonyl cyanide-4-(trifluoromethoxy)phenylhydrazone; LED – blue light source; Myx – myxothiazol; PEMF– pulsed electromagnetic fields; DAA – diacetyl-adenosine; DEA-NONOate – a nitric oxide (NO) donor.
