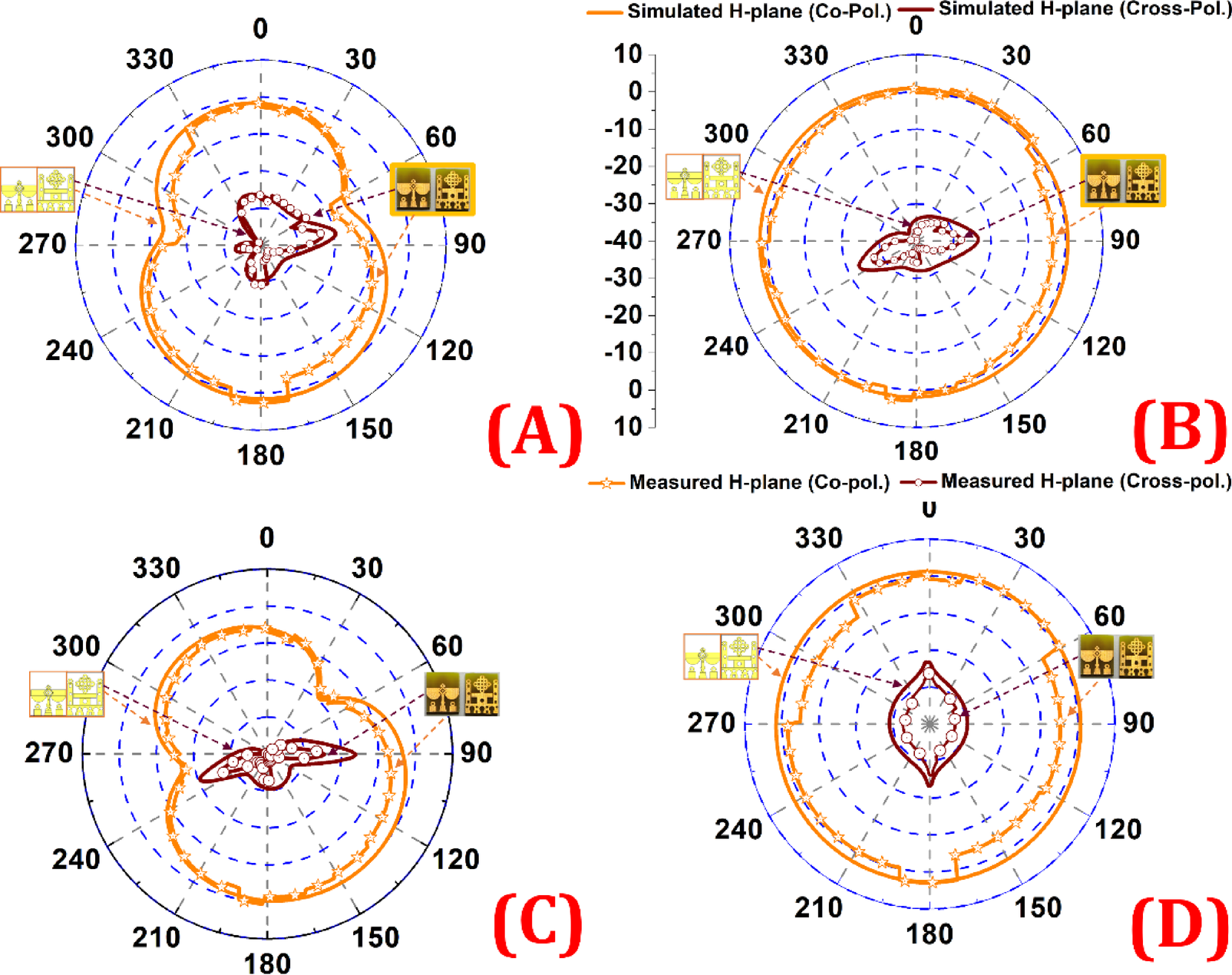

Fig. 10
From: Next-generation compact antenna for robust defense and CubeSat communication
Simulated and measured E-plane and H-plane patterns at 5 GHz and 8 GHz, showing dominant co-polarization and cross-polarization levels below − 20 dB, indicating stable and pure radiation performance.
