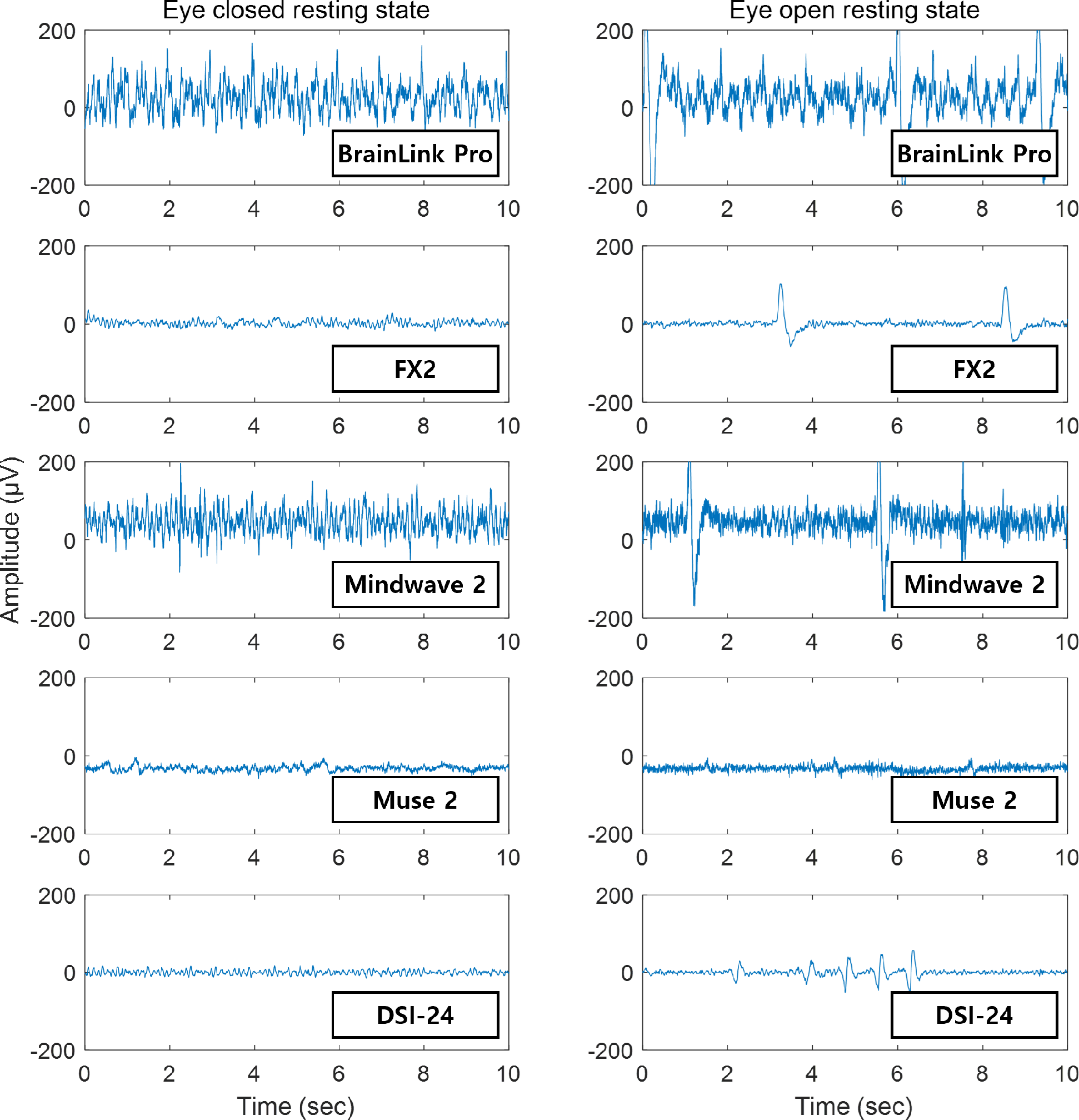

Fig. 4

EEG signal from all five devices, recorded during the eyes closed and eyes open resting state of subject 03. Signals from the four consumer-grade devices are displayed without any preprocessing. The DSI-24 data are additionally high-pass filtered at 3 Hz to remove strong low-frequency components. No normalization is applied.
