Fig. 4

From: Separation of large droplets from an oil-in-water emulsion using a deterministic lateral displacement (DLD) microfluidic chip

Fig. 4The alt text for this image may have been generated using AI.

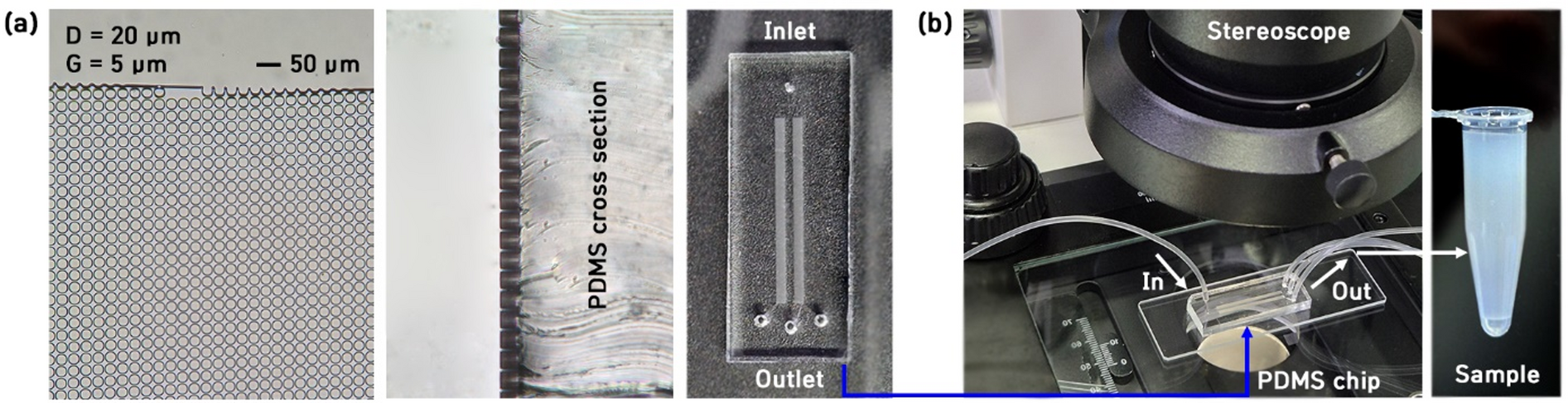

Fabricated microfluidic chip and experimental setup: (a) A PDMS chip and enlarged image of micropillar array with a magnified top-down view of the micropillar array and a cross-sectional image showing the profile of the pillars (b) The experimental setup showing the fabricated PDMS chip mounted on a stereoscope for observation. The sample is injected via the inlet (“In”) and collected from the outlets (“Out”).
