From: Separation of large droplets from an oil-in-water emulsion using a deterministic lateral displacement (DLD) microfluidic chip

Fig. 5The alt text for this image may have been generated using AI.

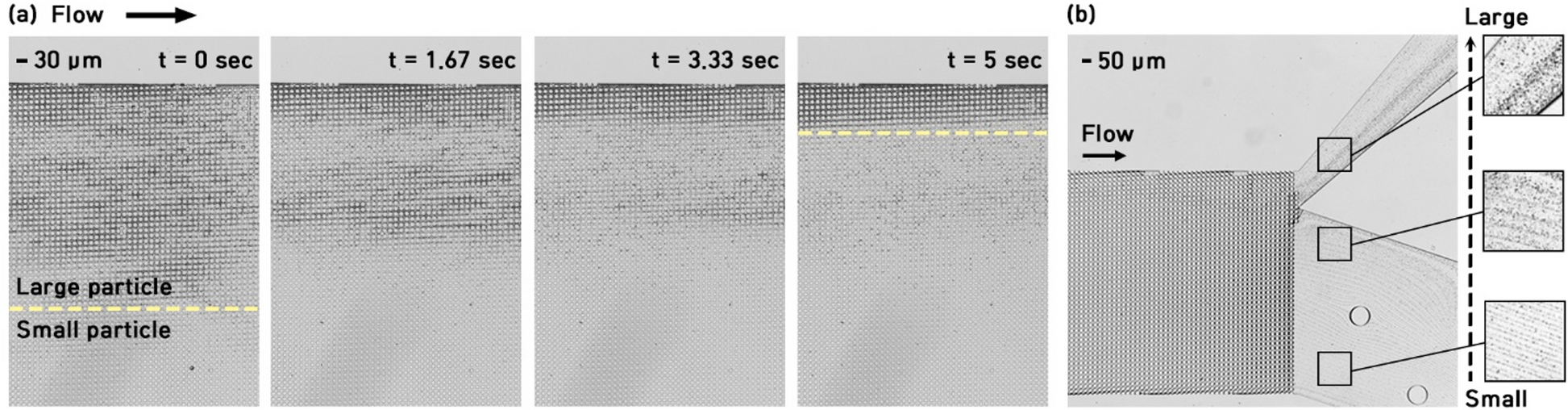

Droplet separation inside the DLD array: (a) Time-lapsed images showing the lateral migration of larger oil droplets as they flow through the micropillar array (images are captured from Supplementary Video 1), (b) separation of oil droplets at the outlet of a DLD channel with modified pillar geometry.
