Fig. 6

From: Separation of large droplets from an oil-in-water emulsion using a deterministic lateral displacement (DLD) microfluidic chip

Fig. 6The alt text for this image may have been generated using AI.

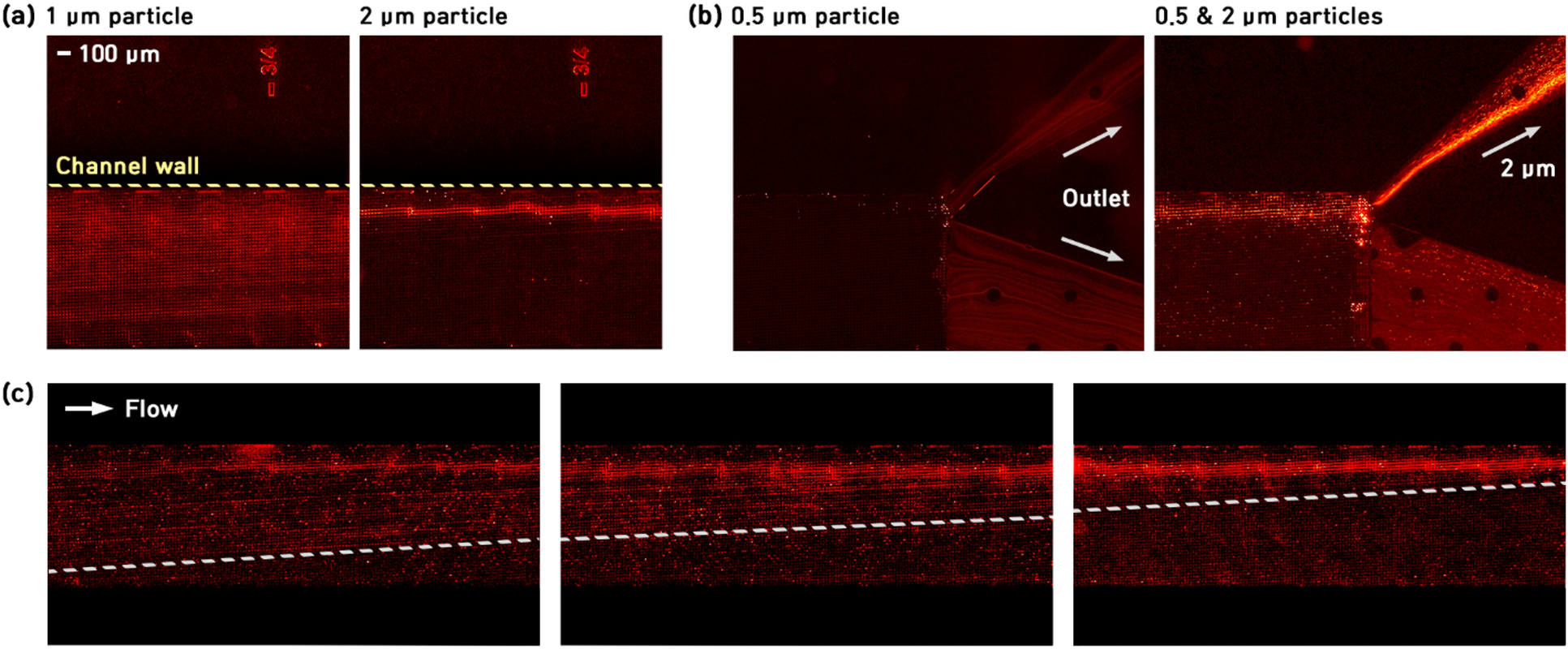

Trajectories of fluorescent particles inside a micropillar array: (a) Comparison of flow images for 1-µm and 2-µm particles at the same position in the array, (b) flow patterns of 0.5-µm particles alone versus a mixed sample of 0.5-µm and 2-µm particles at the outlet, (c) flow images of 2-µm particles at different positions from upstream to downstream, showing progressive lateral displacement.
