From: Separation of large droplets from an oil-in-water emulsion using a deterministic lateral displacement (DLD) microfluidic chip

Fig. 7The alt text for this image may have been generated using AI.

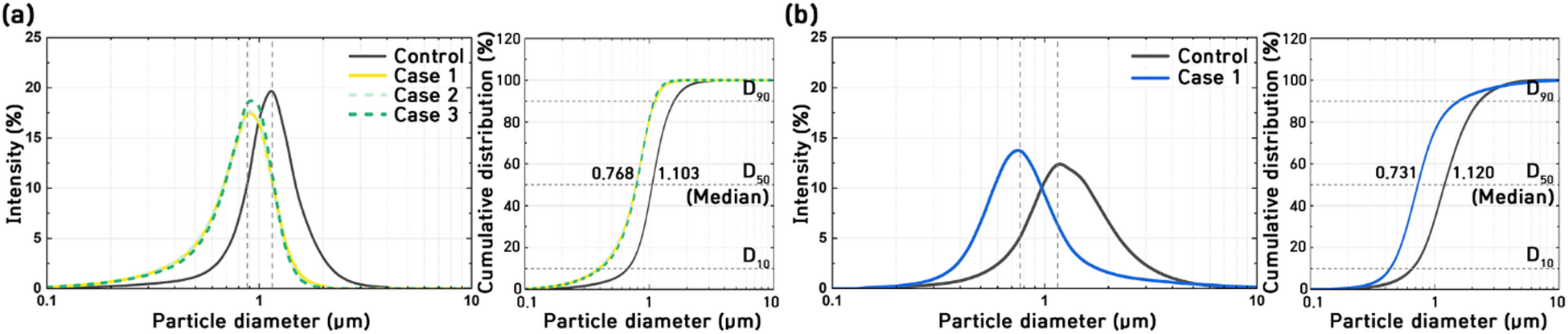

Particle size distribution of nanoemulsion samples before and after DLD separation. (a) Results for a sample with a relatively narrow initial size distribution, showing high reproducibility across three different chips (Case 1–3). (b) Results for a sample with a broader initial size distribution. Both frequency and cumulative distribution curves are shown.
