From: 3D upper crustal structure modelling in southwestern Sicily through multiapproach onshore–offshore data: insight into Sciacca Geothermal Field

Fig. 7

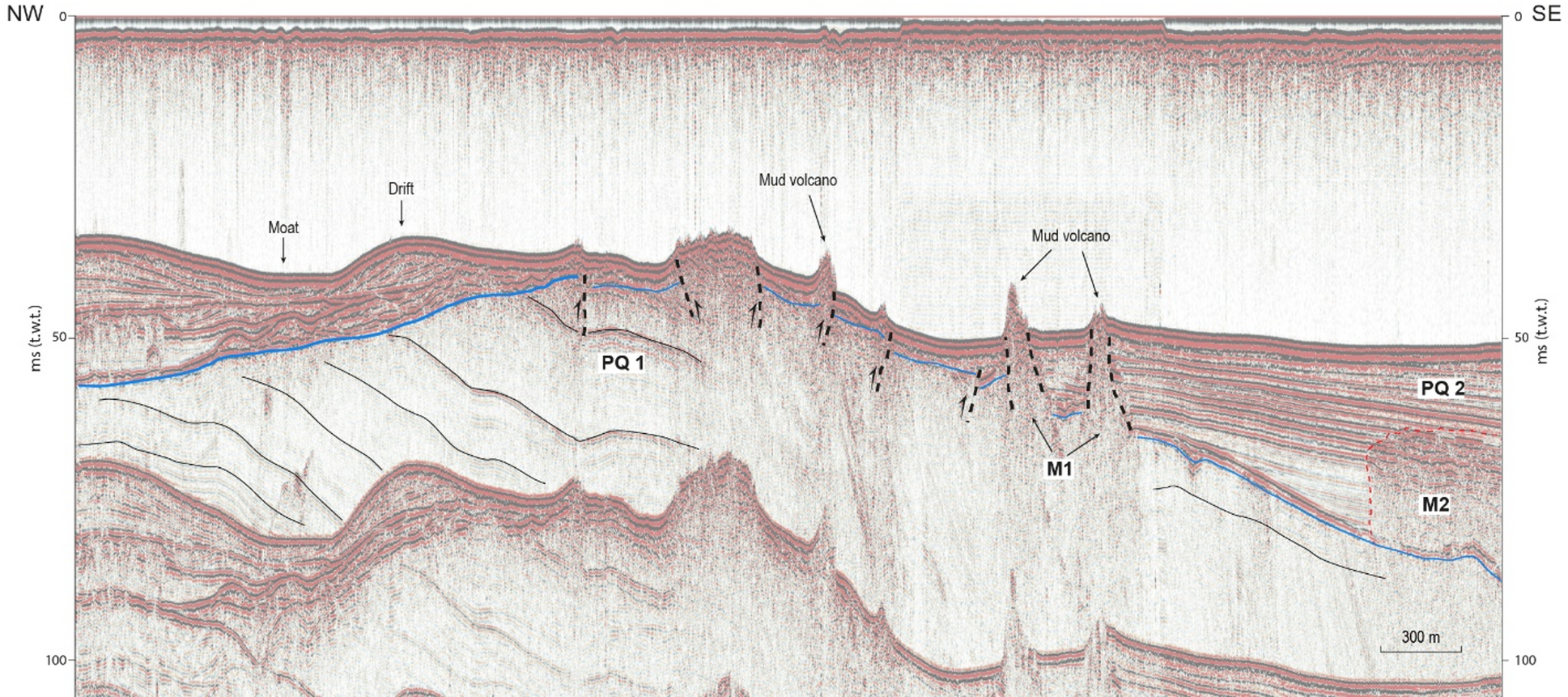

Seismic interpretation of the portion of S9 high-resolution seismic profiles (location in Fig. 2). The blue line marks an erosional truncation surface separating units PQ1 and PQ2 (LGM). Solid black lines indicate the main reflectors within unit PQ1, while dashed black lines represent tectonic lineaments. In the northwestern portion, lenticular-shaped seabed deposits are identified, interpreted as contourite deposits formed by bottom current activity (moat and drift morphology).
