Fig. 3 | Scientific Reports

Fig. 3

From: Designing multisource blue–green cooling networks by coupling landscape pattern metrics and circuit theory

Fig. 3

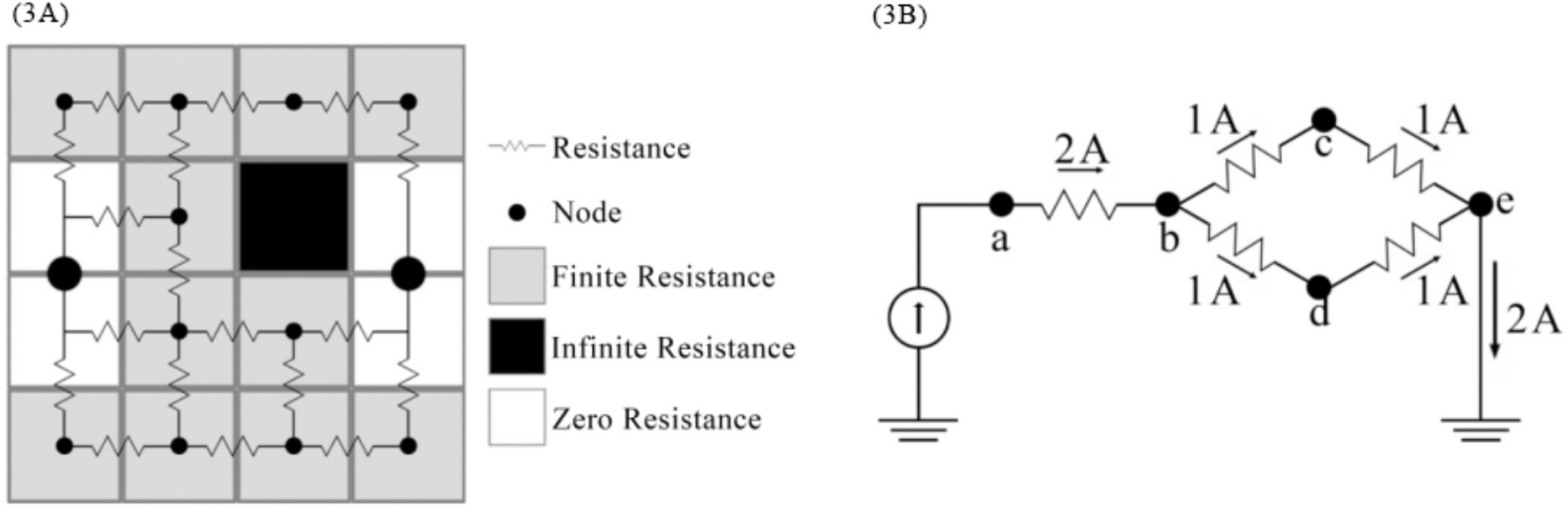

Integrated schematic of resistance network and current flow. (3A) Resistance Network Model, showing nodes representing low-resistance patches and resistive links forming a landscape circuit. (3B) Current Flow and Bottleneck Identification, illustrating current pathways and critical nodes where connectivity could be disrupted if removed. Concept and methodology adapted from McRae et al. (2008)46.
