Table 5 Simulation results of the first apartment (Northwest Orientation).

From: CFD and site analysis for optimizing indoor air quality in sustainable social housing via windcatcher integration

View full size image

Air Speed cm/s

View full size image

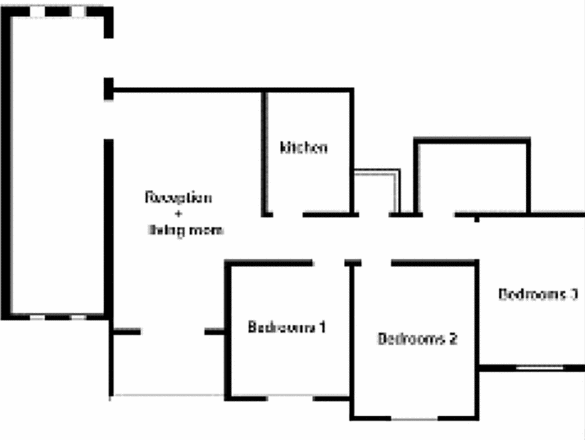

Model

View full size image

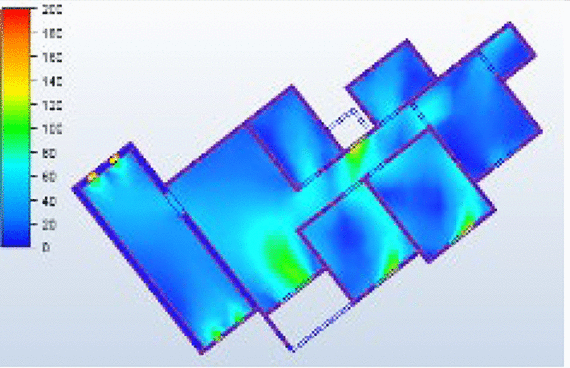

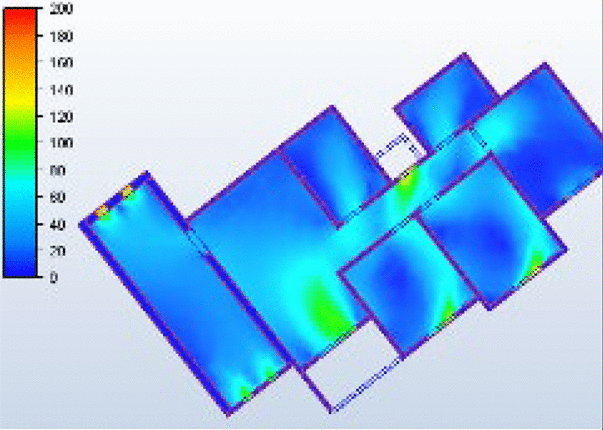

Case1

Living room

47.5

45.64

Bedroom 1

33.28

32.36

Bedroom 2

29.54

24.68

Bedroom 3

18.08

35.46

Kitchen

21.6

18.08

View full size image

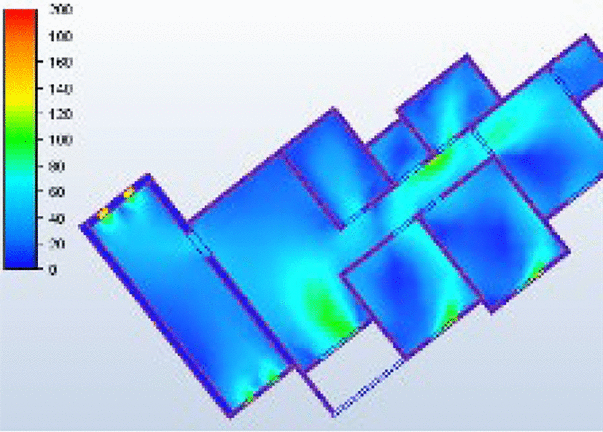

Case2

View full size image

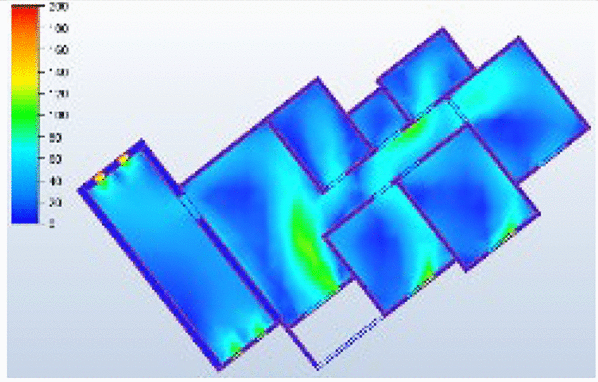

Case3

Living room

45.23

49.9

Bedroom 1

31.8

35.73

Bedroom 2

25.53

31.65

Bedroom 3

33.14

21.1

Kitchen

24.9

22.93
