Fig. 3

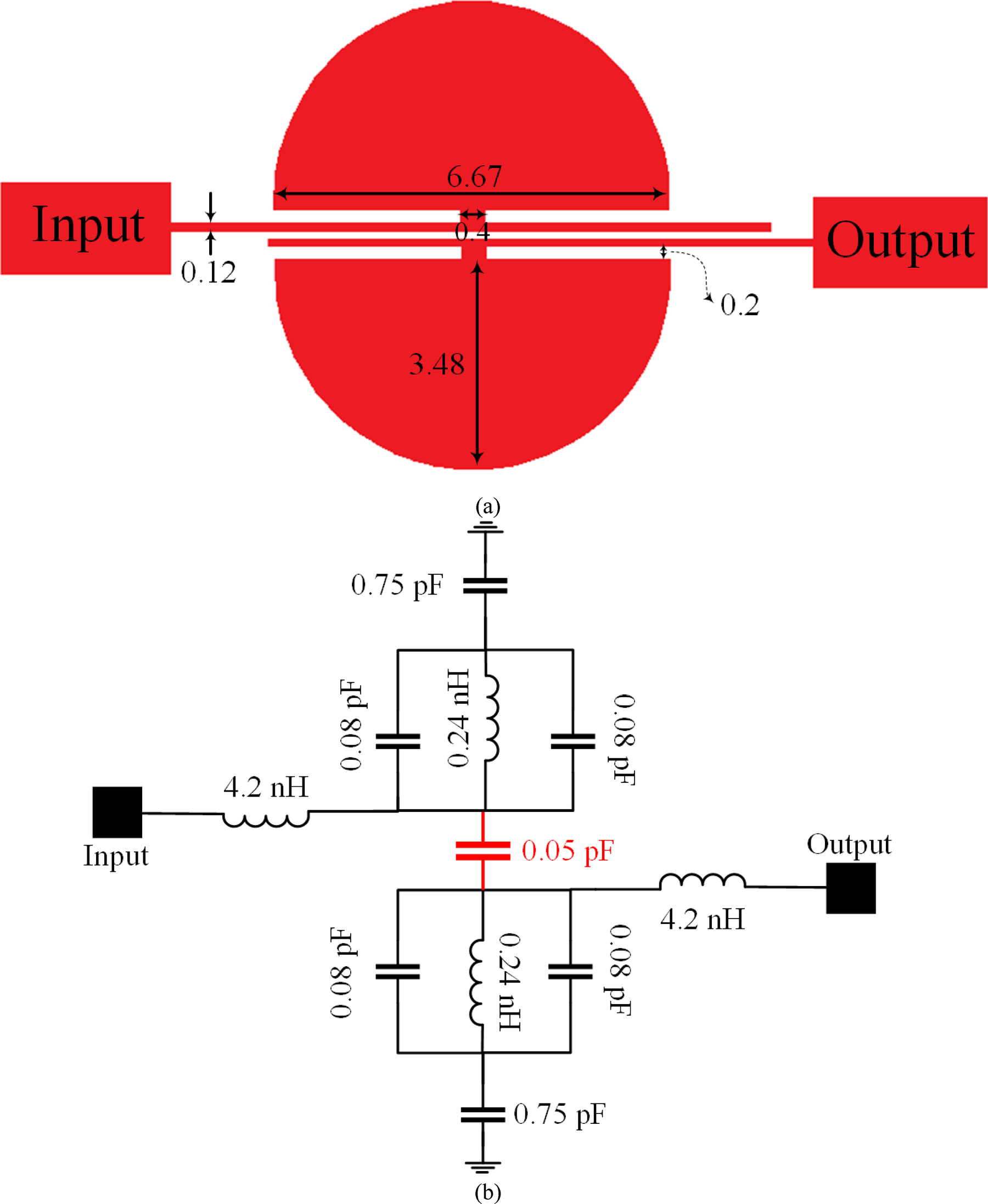

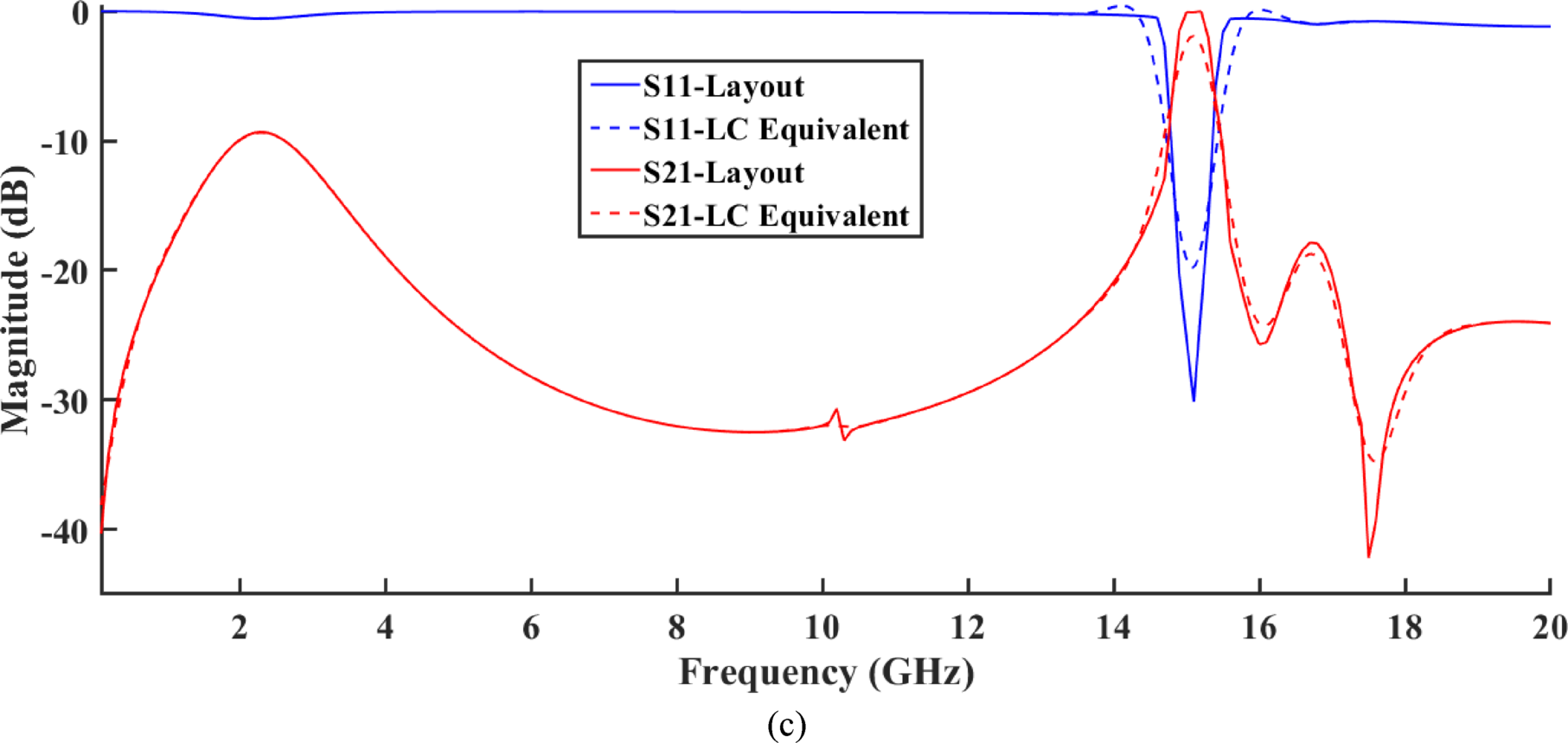

(a) Geometry of the proposed filter with semicircular resonators, (b) Equivalent LC circuit model with extracted parameters, and (c) Simulated and LC-model S-parameters comparison.
Fig. 3 | Scientific Reports
(a) Geometry of the proposed filter with semicircular resonators, (b) Equivalent LC circuit model with extracted parameters, and (c) Simulated and LC-model S-parameters comparison.
