From: Mapping and predicting groundwater accumulations using remote sensing and aeromagnetic data: a case study from Bahariya Oasis, Western Desert, Egypt

Fig. 8

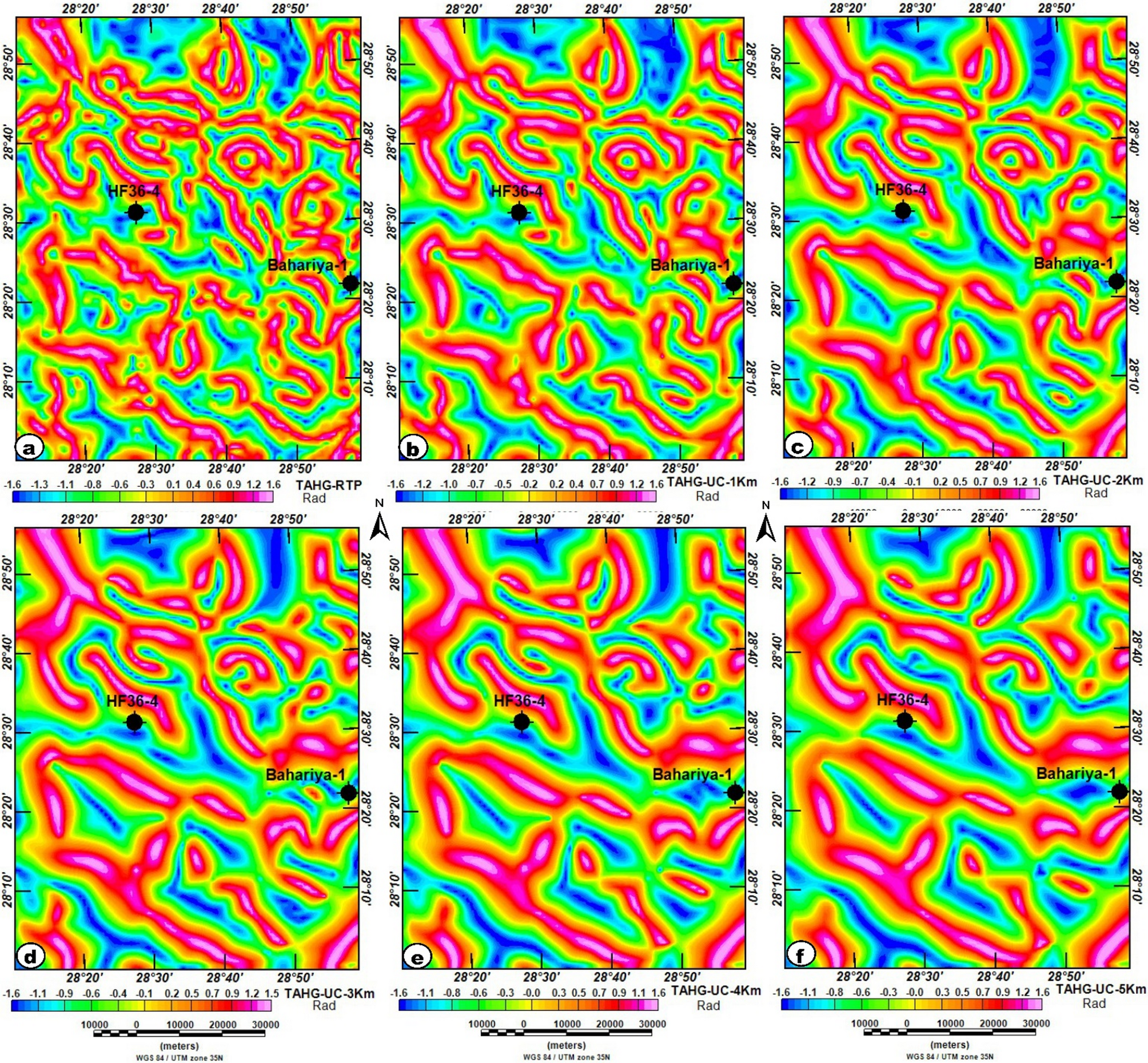

TAHG maps of the study area: (a) TAHG-RTP; (b) TAHG-UC at 1 km; (c) TAHG-UC at 2 km; (d) TAHG-UC at 3 km; (e) TAHG-UC at 4 km; and (f) TAHG-UC at 5 km maps show the boundaries of subsurface source bodies. The figure was generated using Geosoft Oasis montaj (v8.3.3) software (Seequent; https://www.seequent.com/products-solutions/oasis-montaj/).
