Fig. 6

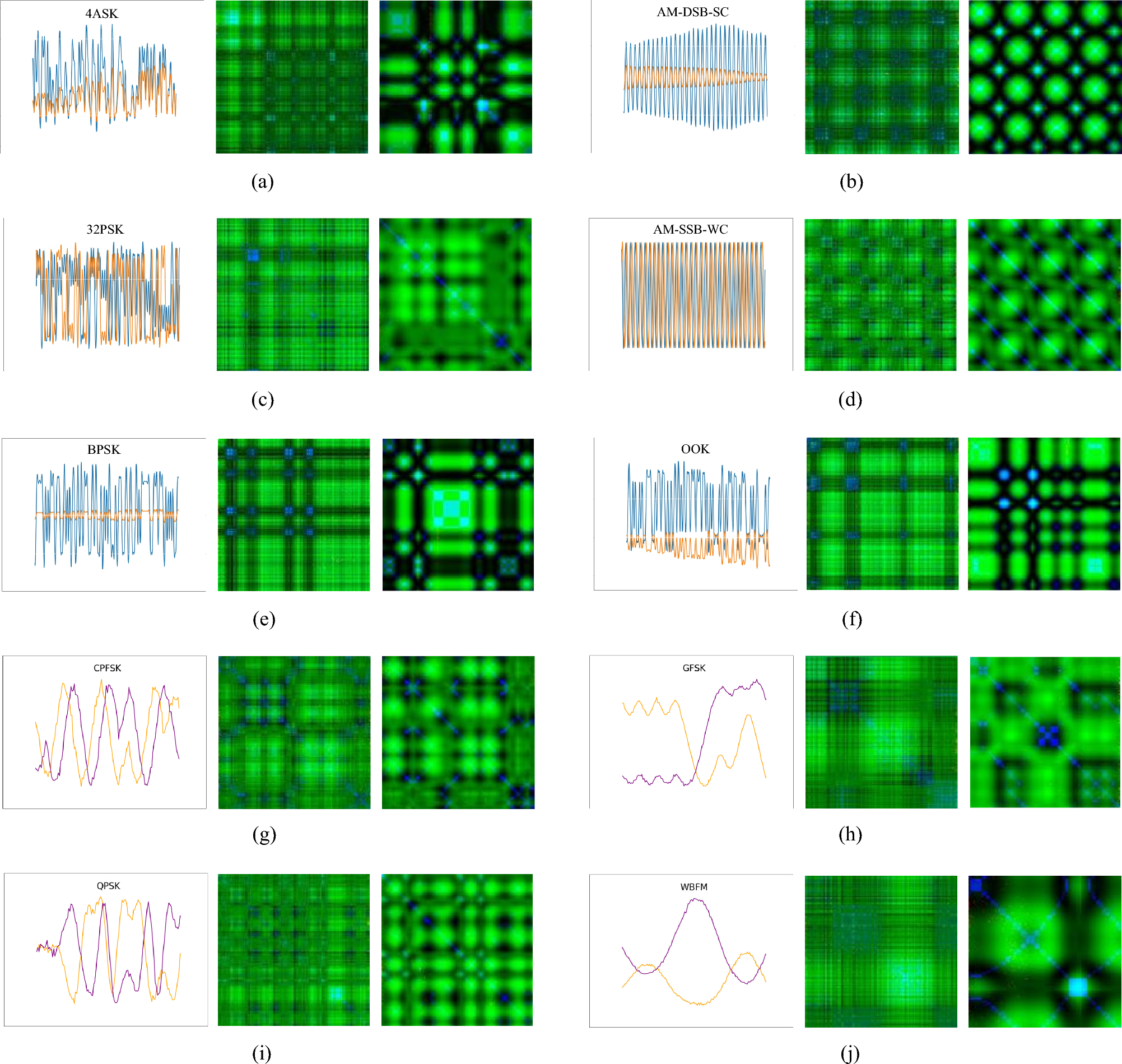

Example of mixing images on RadioML2018.01A and RadioML2016.10A. (a-f) are collected from RadioML2018.01A, and (g-j) are collected from RadioML2016.10A. For each subgraph, the original time-series image (left), the mixing image under 0dB (center) and the mixing image under 18dB (right) are presented.
