Fig. 6

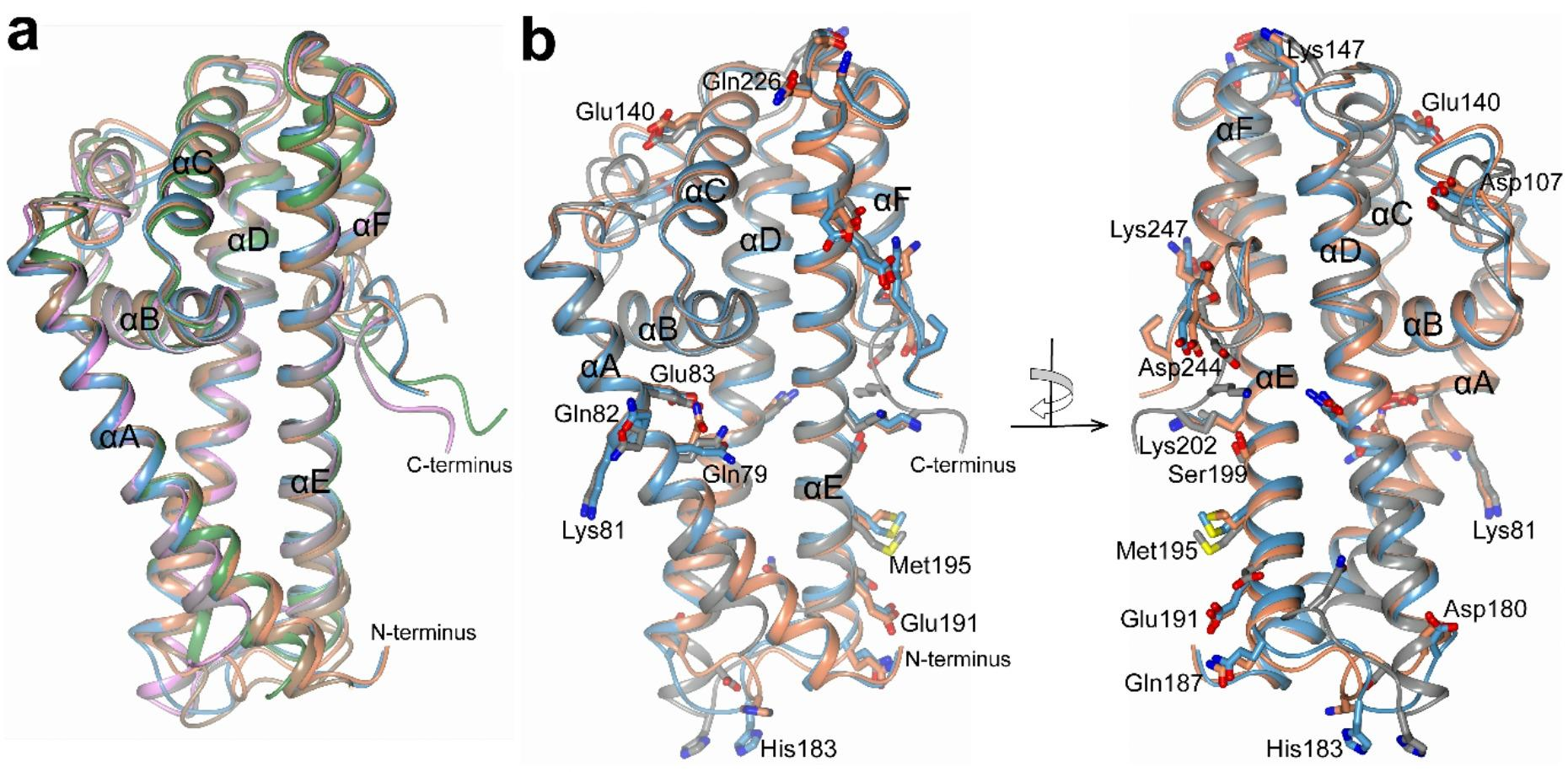

Localization of the potential C9 interacting region within PFam54 Clade IV orthologs. (a) Superimposed predicted structure of BGA66PBi (blue) with BGA66NT24 (orange; RMSD 0.60 Å), BGA68NT24 (green; RMSD 1.26 Å), BGA71NT24 (gray; RMSD 1.49 Å), BGA67bJHM1114 (brown; RMSD 1.52 Å), and BGA71bJHM1114 (pink; RMSD 1.46 Å). (b) Superimposed BGA66PBi (blue) with BGA66NT24 (orange; RMSD 0.60 Å) and BGA71NT24 (gray; RMSD 1.49 Å) showing the conserved residues between the three members, but not with BGA68NT24, BGA67bJHM1114, and BGA71bJHM1114. The structure is showed in two different angles, rotated by 180 degrees. All six α-helices have been indicated from αA to αF.
