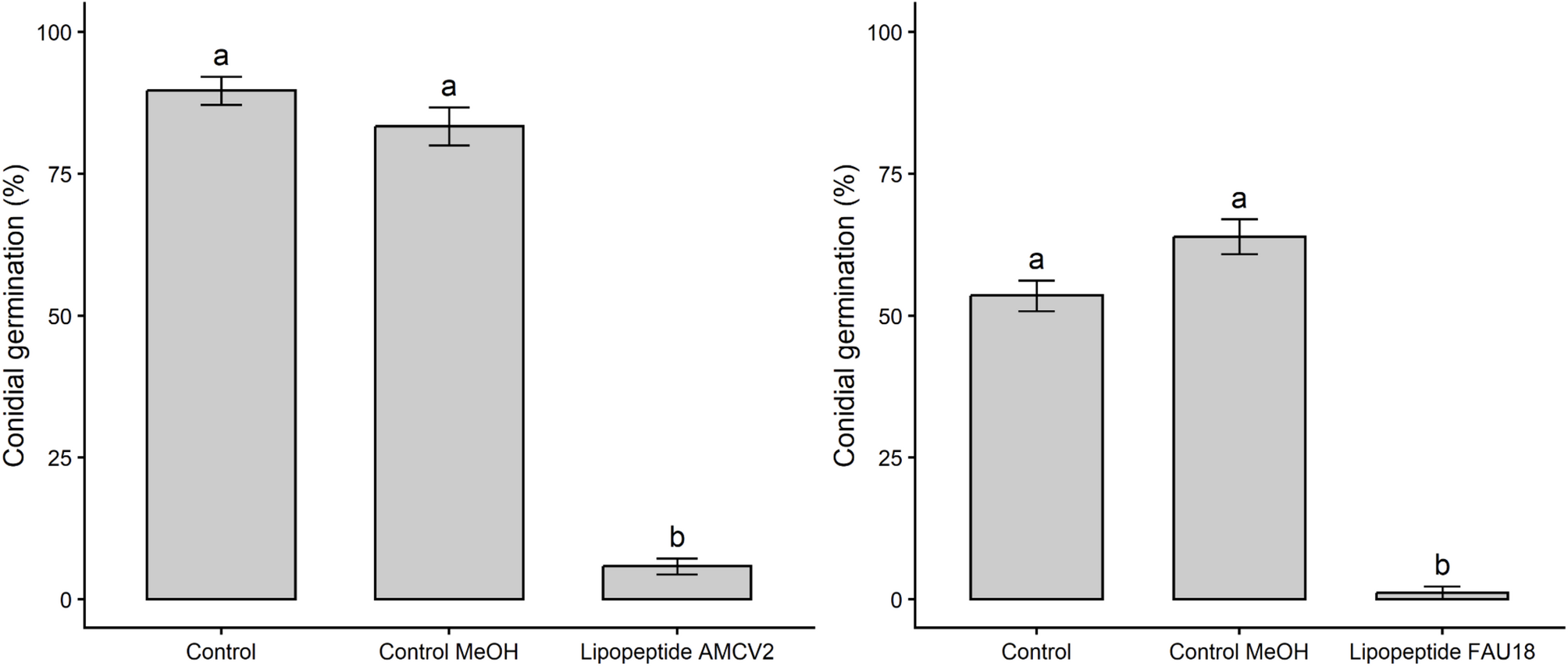

Fig. 6
Effect of B. subtilis s.s. AMCV2 and B. subtilis s.s. FAU18 derived lipopeptides on Botrytis cinerea B05.10 conidial germination. Conidial germination was evaluated after 6 h of incubation in untreated controls, methanol controls, and in the presence of lipopeptides produced by strains AMCV2 and FAU18. Bars represent the mean percentage of germinated conidia ± standard error (SE) calculated from 10 independent microscopic fields per treatment (n = 10). Different letters indicate statistically significant differences among treatments according to the Kruskal–Wallis test followed by Dunn’s post hoc test with Benjamini–Hochberg correction (p < 0.05).
