From: Integrated transcriptomic and targeted triterpenoid profiling reveals key enzymes in triterpenoid biosynthesis of Oplopanax elatus

Fig. 7

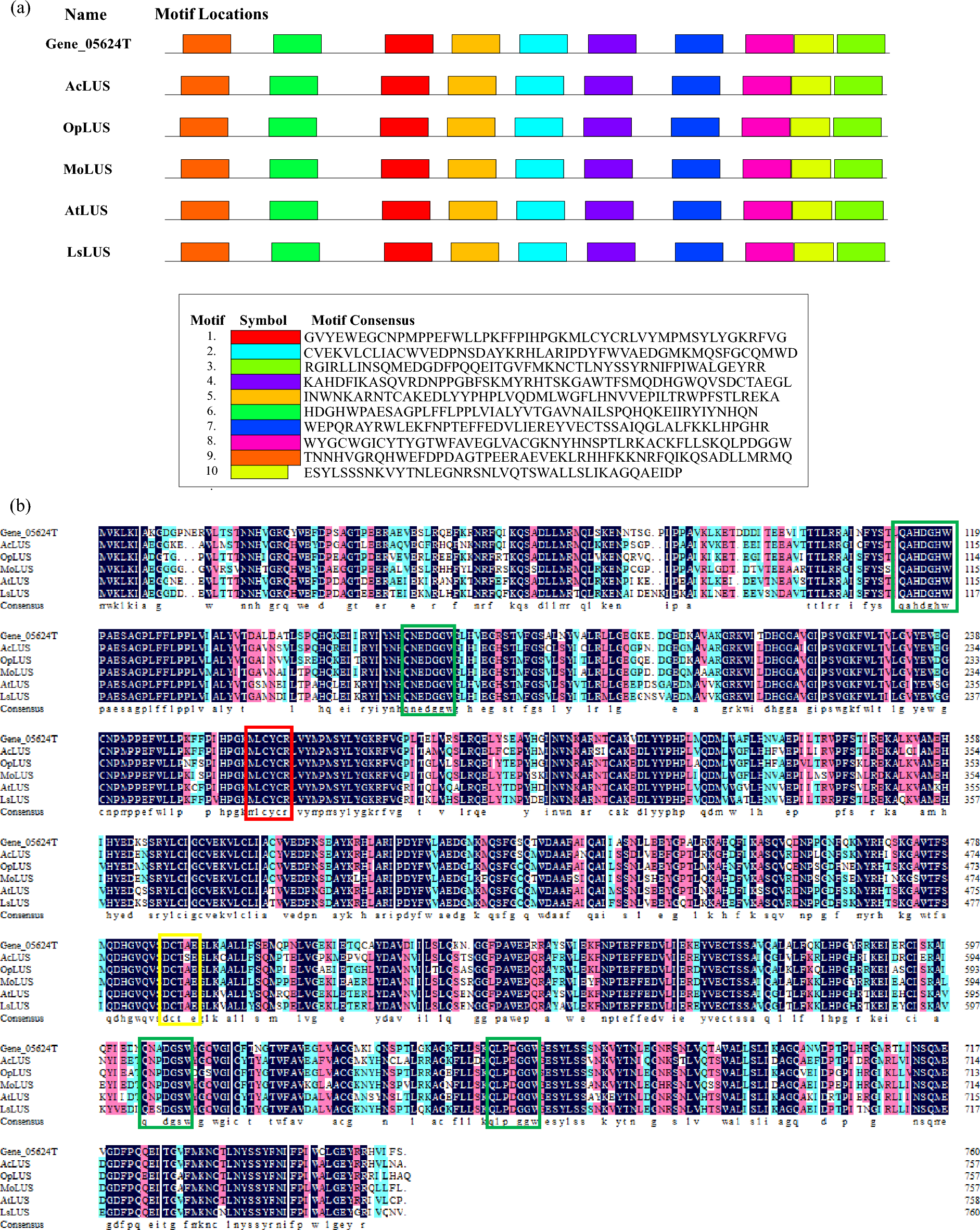

The conserved motifs of lupeol synthase (a) The distribution patterns of ten motifs in lupeol synthase from various plants are shown. Each motif is represented with specific colors at the bottom. (b) Alignment of the deduced amino acid sequence of lupeol synthase from O. elatus with those of other species. Red box highlight the MLCYCR motif, green boxes indicate the QW motifs and yellow box represents the DCTAE motif.
