From: Combined machine learning - 3D physics based approach for building damage evaluation: the case of L’Aquila 2009

Fig. 1

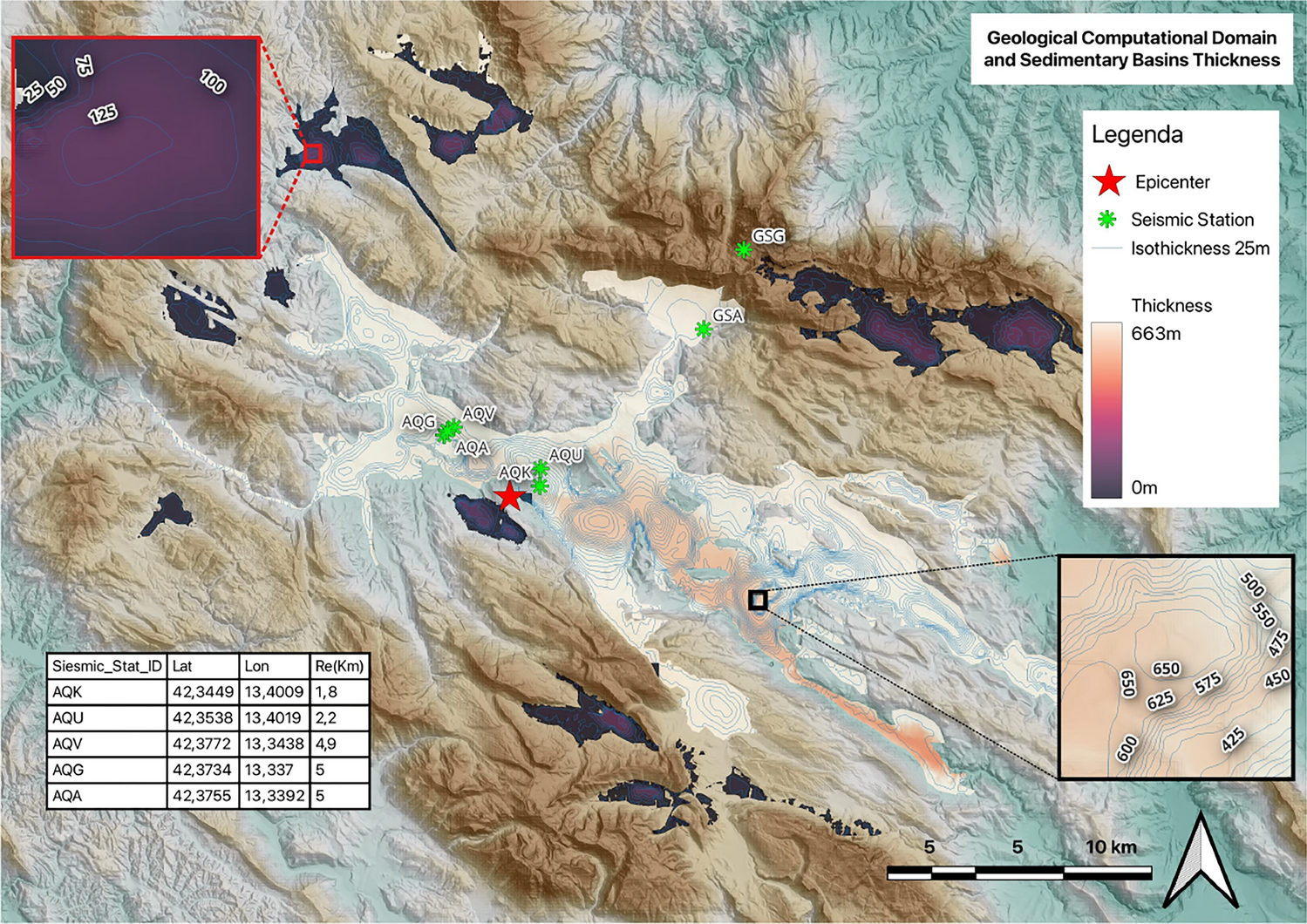

This figure shows the computational domain, including the main basin, named Media Valle dell’Aterno, and nine smaller sedimentary basins with a maximum depth of 150 m. We refer to the main basin as the highlighted area (color scale ranging from white to peach) that contains the seismic stations AQG, AQV, AQK, AQA, AQU and GSA, whereas the nine additional basins are the highlighted areas (in purple color) disjointed from the main basin. The (6\(^{th}\) April 2009) L’Aquila earthquake epicenter is marked with a red star. (This figure has been realized using the software QGis (https://qgis.org/) version 3.40.3, license QGIS (GPL v.2+)).
