Fig. 4

From: Soil phosphorus forms and their availability in six typical plantations at the southern foot of the Taihang Mountains, China

Fig. 4

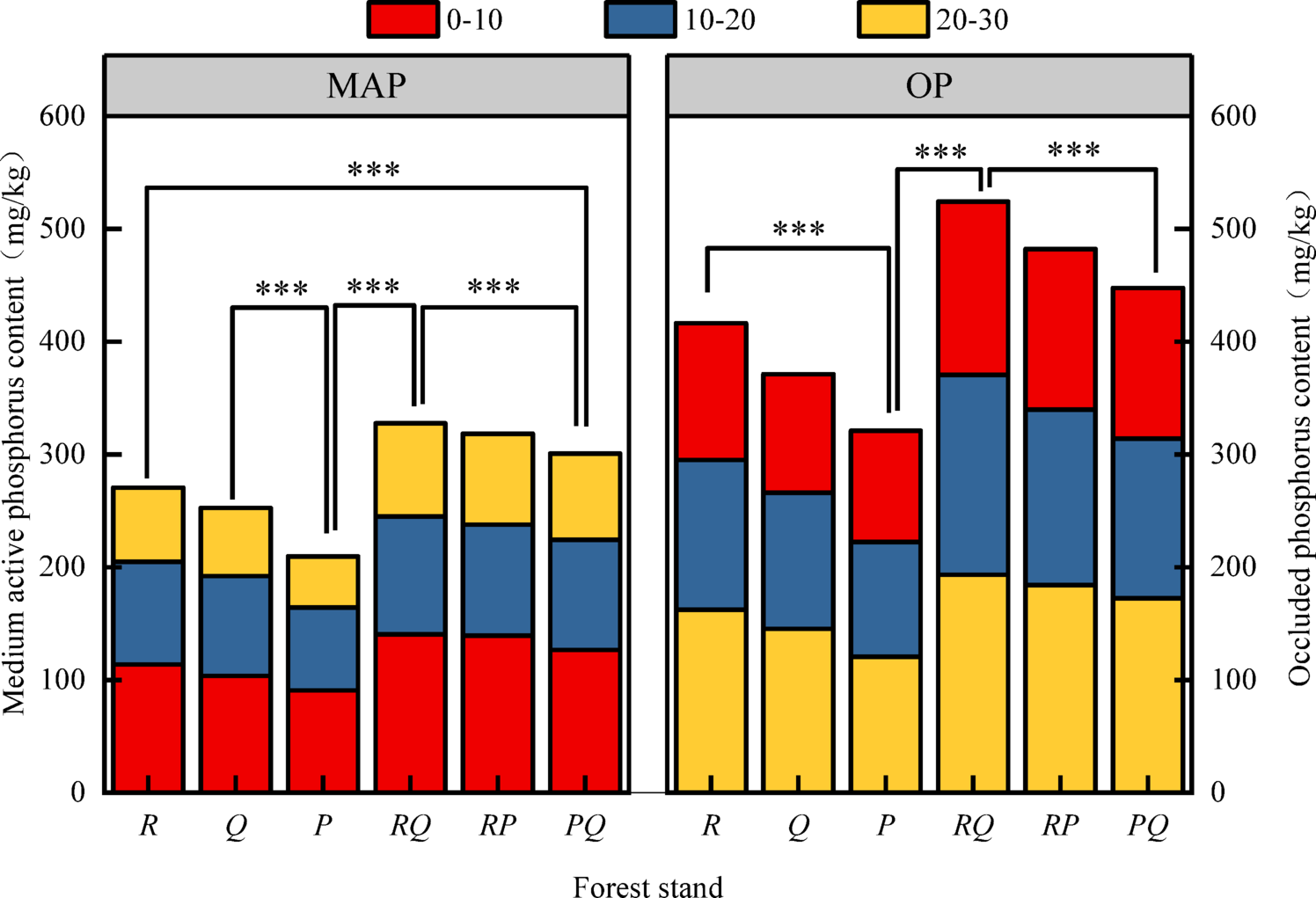

Characteristics of medium active phosphorus and occluded phosphorus in soils. Values are mean ± SE (n = 3 plots). Different lowercase letters above bars indicate significant differences among forest types within the same soil depth (P < 0.05, one-way ANOVA). Abbreviations: MAP, moderately active phosphorus; OP, occluded phosphorus; other abbreviations as in Fig. 1.
