Fig. 4

From: Observational constraint of in-cloud supersaturation for simulations of aerosol rainout in atmospheric models

Fig. 4

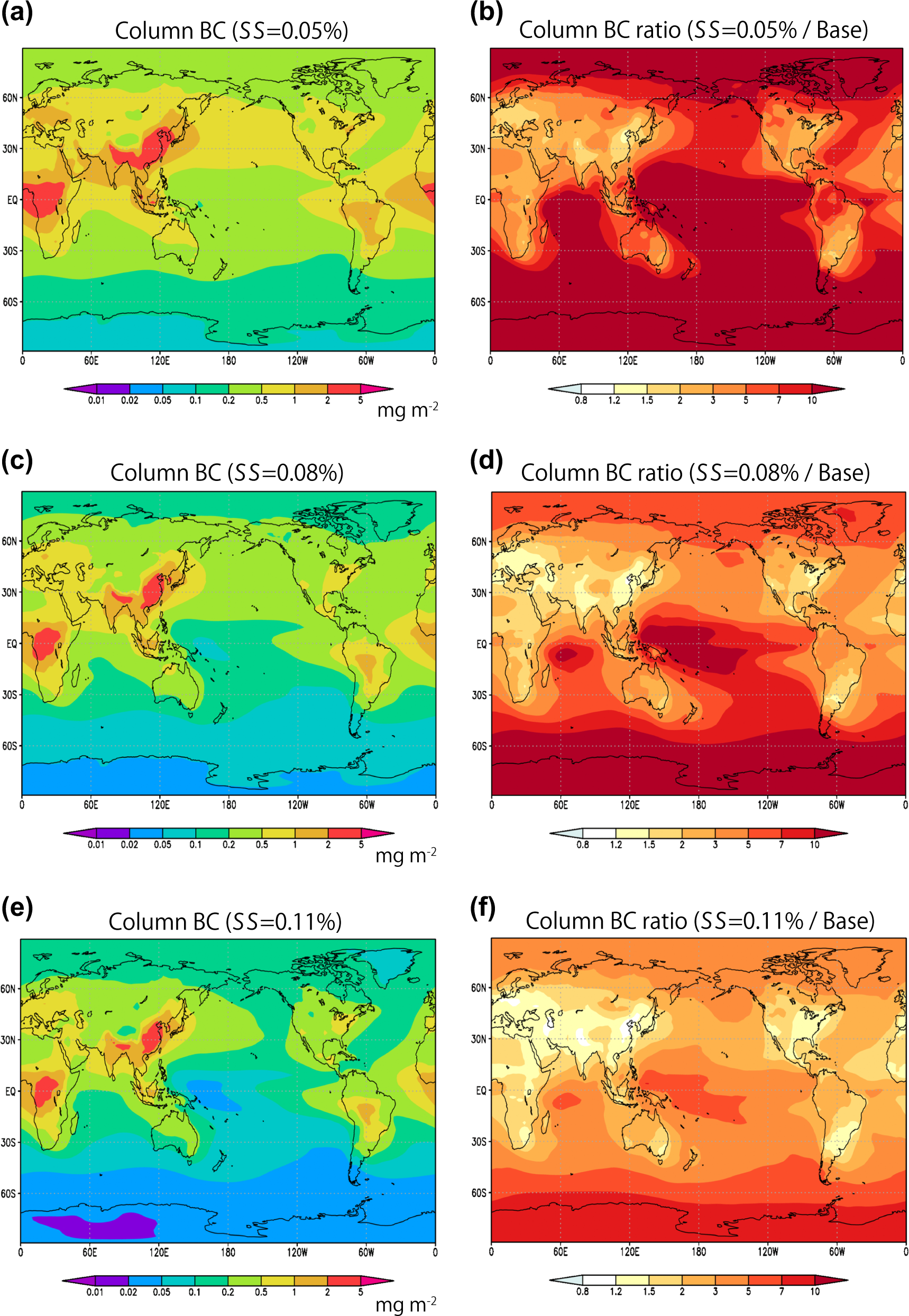

a, c, e Global distributions of the 5-year mean column BC mass simulated by the CAM5-chem/ATRAS2 model with the supersaturation (SS) of precipitating clouds constrained to be 0.05%, 0.08%, and 0.11%, respectively. b, d, f Global distributions of the ratio of column BC mass obtained by the sensitivity-test simulations to that obtained by the base simulation. In the sensitivity-test simulations, the SS constraint was applied to both grid-scale and sub-grid-scale clouds
