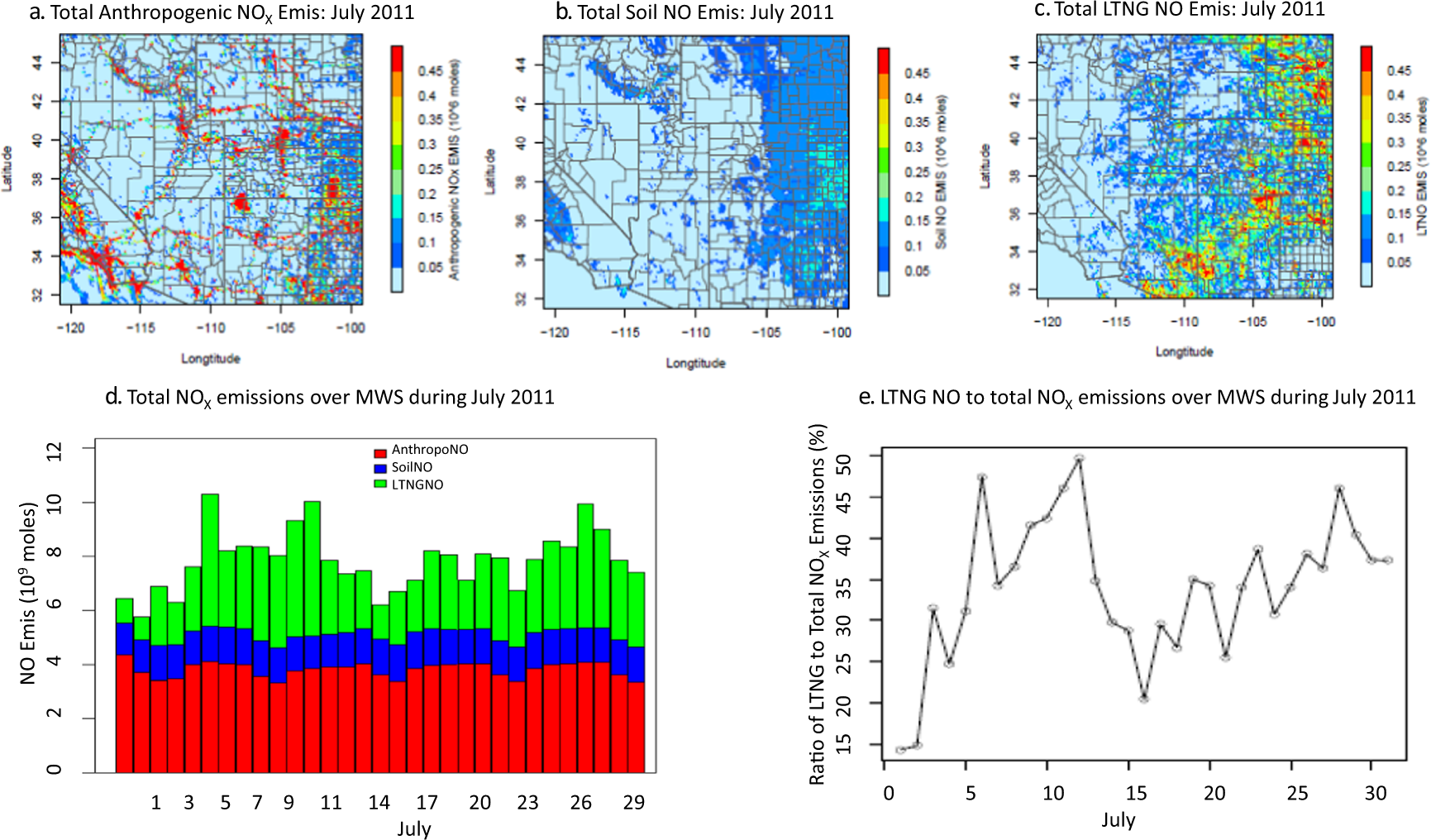

Fig. 2: NO_X emissions from different sources in time and space during July, 2011.

a Anthropogenic NO_X emissions. b Soil NO_X emissions. c Lightning NO_X emissions. d Daily total emissions excluding those from the area west of −115° longitude. e The daily lightning NO_x ratio to the total NO_X emissions.
