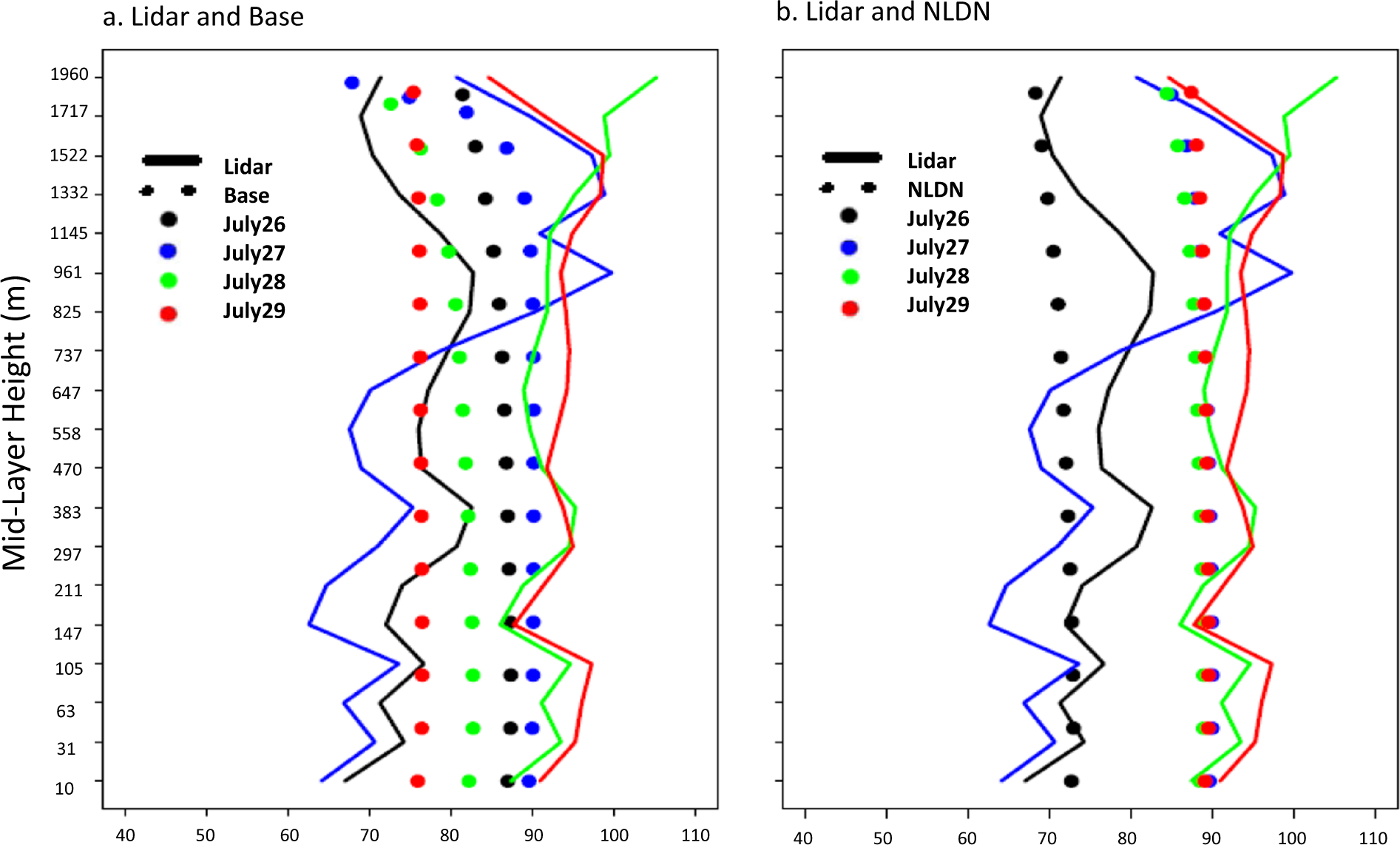

Fig. 4: Lidar measured and simulated O3 mixing ratios at BAO site.
a Maximum O3 mixing ratios across the layers on each day over the episode (Lidar and Base), and b The same as a, but for Lidar and NLDN. Note that solid lines represent lidar measurements on different days while the circles are the model values.
