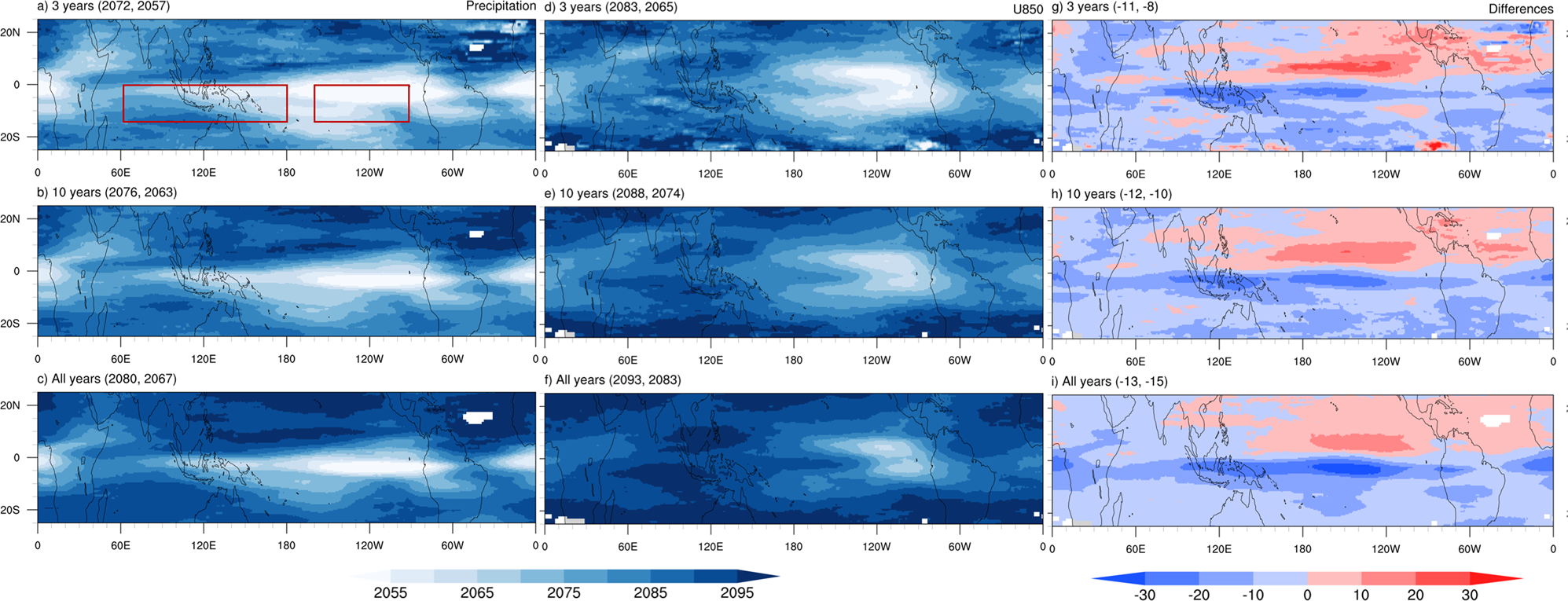

Fig. 3: Timing of MJO variability change signal under anthropogenic warming.
From: Emergence of Madden-Julian oscillation precipitation and wind amplitude changes in a warming climate
a–f Ensemble mean of the projected year when MJO precipitation and wind amplitudes exceed the historical bounds with a, d 3 consecutive years, b, e 10 consecutive years, and c, f all subsequent years thresholds. g–i Differences between the left and right panels. The number in the parentheses shows the averaged projected year over the two boxes a for the Indo-Pacific warm pool (15°S-Eq., 60°E-180°) and central-eastern Pacific (15°S-Eq., 90°W-160°W), respectively. See Supplementary Figure 4 for the standard deviation across ensemble members.
